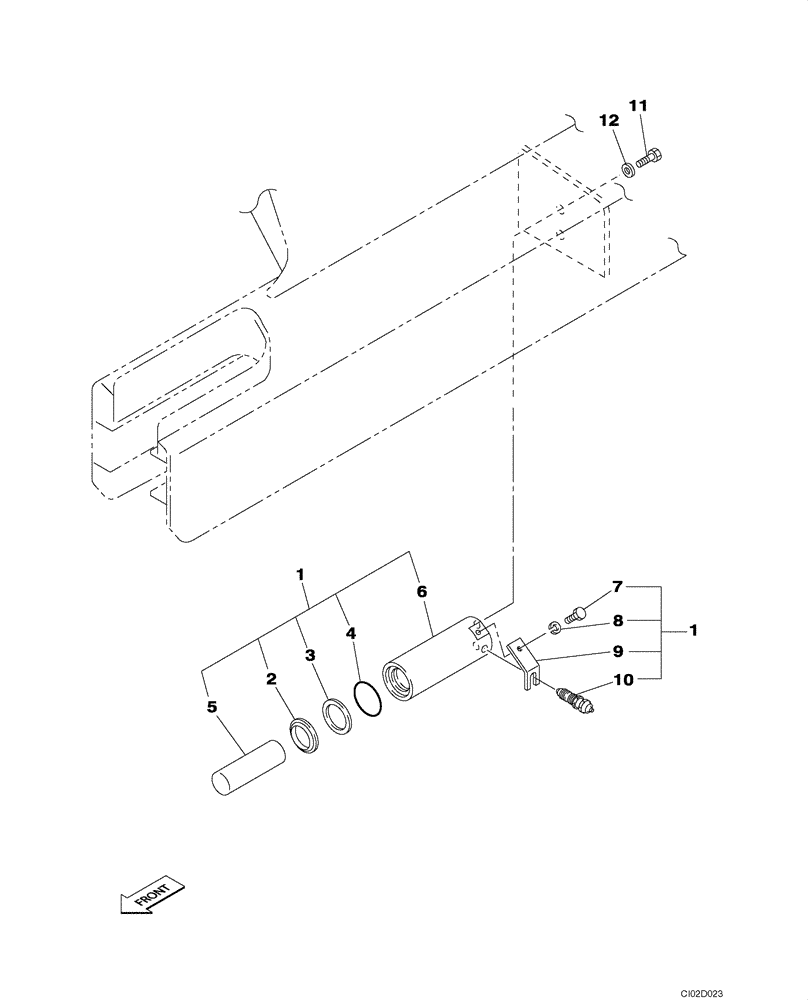

Запчасти Case CX75SR (05-07) - CYLINDER ASSY - ADJUSTER (11) - TRACKS/STEERING

1

KAA1219

CYLINDER ASSY.

Incl. 2 - 10

2шт.

2

166236A1

SEAL

Dust

1шт.

3

154085A1

BACK-UP RING

1шт.

4

154640A1

O-RING

1шт.

5

KAA1220

PISTON ROD

1шт.

6

KAA1221

HYD CYL SLEEVE

1шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

8

183-108VR

SPRING WASHER

1шт.

9

KAA1222

BRACKET

1шт.

10

150107A1

LUBE NIPPLE

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

12

150811A1

WASHER

M12

4шт.
