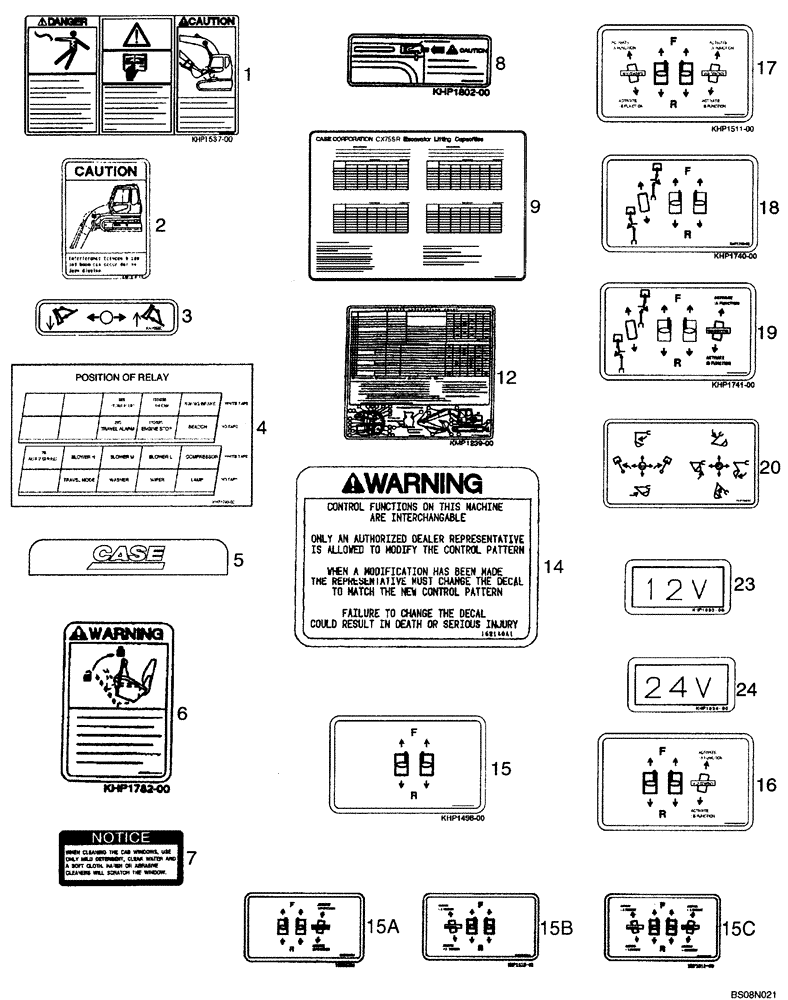

Запчасти Case CX75SR (09-56) - DECALS (09) - CHASSIS/ATTACHMENTS

1

KHP1537

DECAL

Danger/Caution: Attachment Interference

1шт.

2

KHP1316

WARNING DECAL

Caution: Interference Between Blade and Boom

1шт.

3

KAP0859

DECAL

With Dozer Blade

1шт.

4

KHP1743

LABEL

Position Of Relay

1шт.

5

KHP1742

DECAL

Case

1шт.

6

KHP1782

WARNING DECAL

Warning

1шт.

7

KHP1540

WARNING DECAL

Notice, When Cleaning Cab Windows

1шт.

8

KHP1802

WARNING DECAL

Warning

1шт.

9

KAP10320

DECAL

Lifting Capacities; Standard Boom; Replaces KAP1498

1шт.

9

KAP10330

Lifting Capacities; Offset Boom; Replaces KAP1499

1шт.

9

KAP10340

Lifting Capacities; Standard Boom, Australia; Replaces KAP1536

1шт.

9

KAP10350

Lifting Capacities; Offset Boom, Australia; Replaces KAP1537

1шт.

12

KAP1475

DECAL

Lubrication Chart, Models With Standard Boom

1шт.

13

KAP1476

DECAL

Lubrication Chart, Models With Offset Boom, Not Illustrated

1шт.

14

162140A1

WARNING DECAL

Warning, Control Functions On This Machine

1шт.

15

KHP1498

DECAL

Option, Incl. 15A, 15B, 15C

1шт.

15a

169357A1

DECAL

Option

1шт.

15b

KHP1510

DECAL

2nd Option

1шт.

15c

KHP1511

DECAL

Option + 2nd Option

1шт.

16

KHP1484

DECAL

Foot Controls With Auxiliary Hydraulics

1шт.

17

KHP1511

DECAL

Optional, With Second Line Option

1шт.

18

KHP1740

DECAL

Offset Boom

1шт.

19

KHP1741

DECAL

Offset Boom With Second Line Option

1шт.

20

KHP1506

DECAL

Control Levers

1шт.

21

KAP1470

DECAL

Operation, Not Illustrated

1шт.

22

KHP1822

WARNING DECAL

Warning, Not Illustrated

1шт.

23

KHP1803

WARNING DECAL

12V

1шт.

24

KHP1804

WARNING DECAL

24V

1шт.

25

KHP11630

WARNING DECAL

Warning, Engine Oil Fill, Not Illustrated

1шт.
