(09-51) - BUCKET CYLINDER MOUNTING - MODELS WITH OFFSET BOOM

Запчасти Case CX75SR (09-51) - BUCKET CYLINDER MOUNTING - MODELS WITH OFFSET BOOM (09) - CHASSIS/ATTACHMENTS

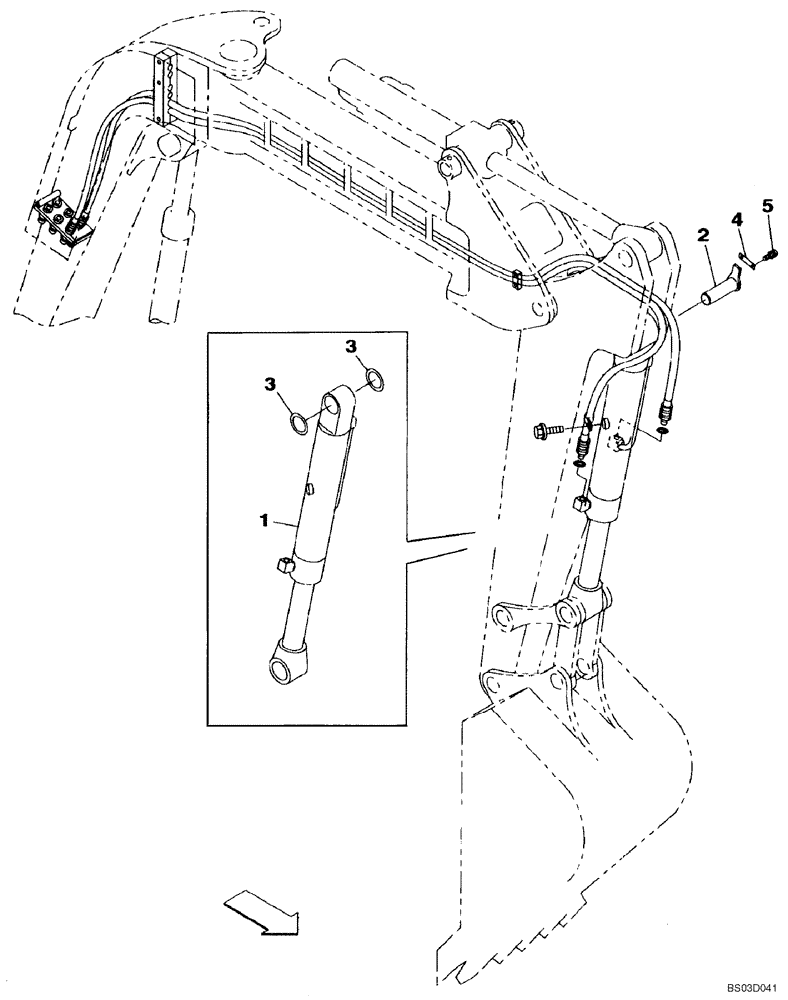

Схема запчастей Case CX75SR - (09-51) - BUCKET CYLINDER MOUNTING - MODELS WITH OFFSET BOOM (09) - CHASSIS/ATTACHMENTS
3
2
3
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2441

BUCKET CYLINDER

Bucket; See Figure 08-91

1шт.

2

KAV2465

PIN

1шт.

3

166404A1

ADJUSTING PLATE

1шт.

4

KHV0456

PLATE

1шт.

5

166346A1

BOLT,Sems, M10

2шт.
