(09-50) - BUCKET CYLINDER MOUNTING - MODELS WITH STANDARD BOOM

Запчасти Case CX75SR (09-50) - BUCKET CYLINDER MOUNTING - MODELS WITH STANDARD BOOM (09) - CHASSIS/ATTACHMENTS

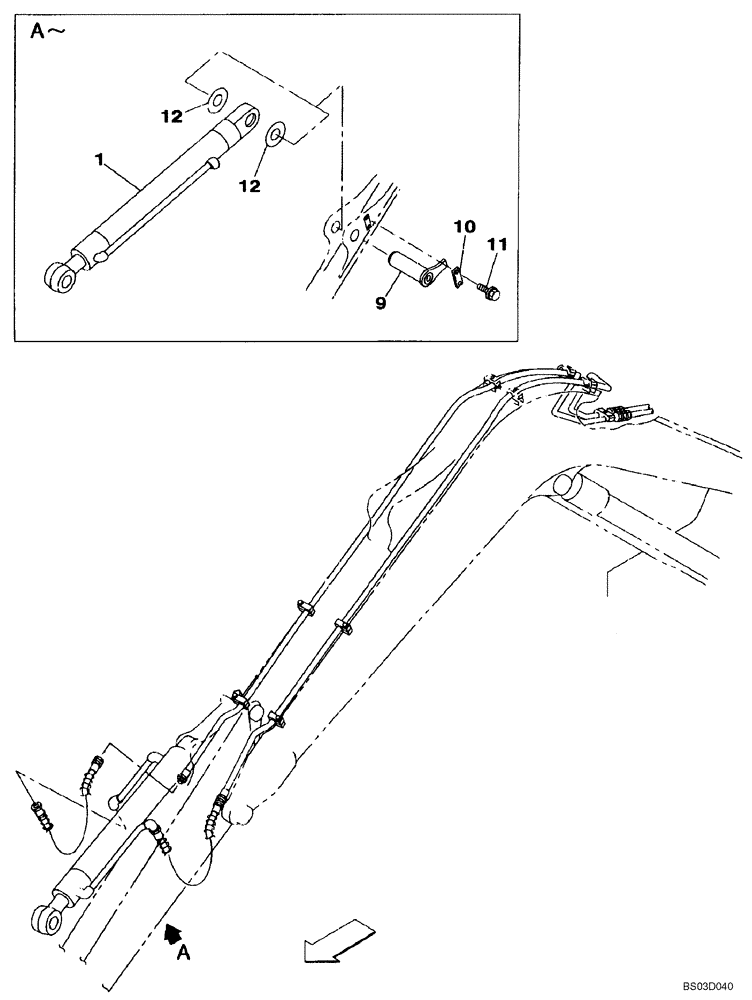

Схема запчастей Case CX75SR - (09-50) - BUCKET CYLINDER MOUNTING - MODELS WITH STANDARD BOOM (09) - CHASSIS/ATTACHMENTS
9
12
12
10
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2440

BUCKET CYLINDER

Bucket; See Figure 08-90

1шт.

2

KAV2465

PIN

1шт.

3

KHV0456

PLATE

1шт.

4

166346A1

BOLT,Sems, M10

2шт.

5

166404A1

ADJUSTING PLATE

1шт.
