(09-50) - BUCKET CYLINDER - MOUNTING, MODELS WITH STD BOOM

Запчасти Case CX75SR (09-50) - BUCKET CYLINDER - MOUNTING, MODELS WITH STD BOOM (09) - CHASSIS/ATTACHMENTS

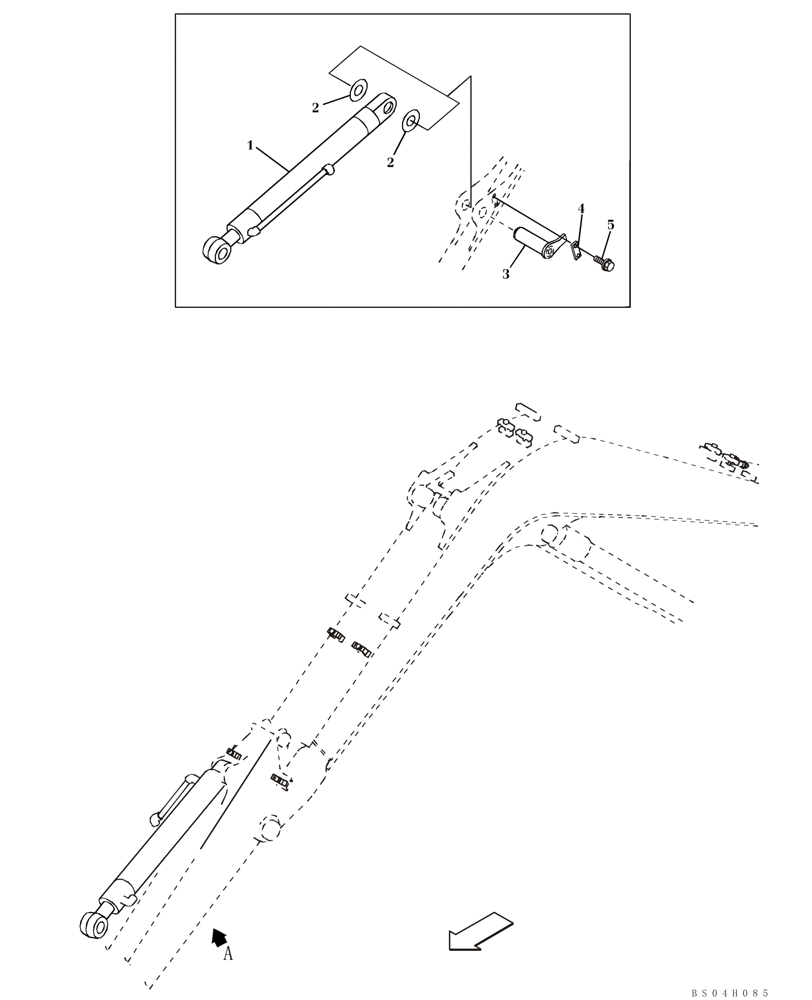

Схема запчастей Case CX75SR - (09-50) - BUCKET CYLINDER - MOUNTING, MODELS WITH STD BOOM (09) - CHASSIS/ATTACHMENTS
3
2
5
a
4
2
1
bs04h085
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2440

BUCKET CYLINDER

Bucket, See Figure 08-94

1шт.

2

166404A1

ADJUSTING PLATE

Shim

1шт.

3

KAV2465

PIN

M16 x 130; 10.9

1шт.

4

KHV0456

PLATE

M16; 10

2шт.

5

166346A1

BOLT,Sems, M10

2шт.
