(09-47) - ARM CYLINDER MOUNTING - MODELS WITH OFFSET BOOM

Запчасти Case CX75SR (09-47) - ARM CYLINDER MOUNTING - MODELS WITH OFFSET BOOM (09) - CHASSIS/ATTACHMENTS

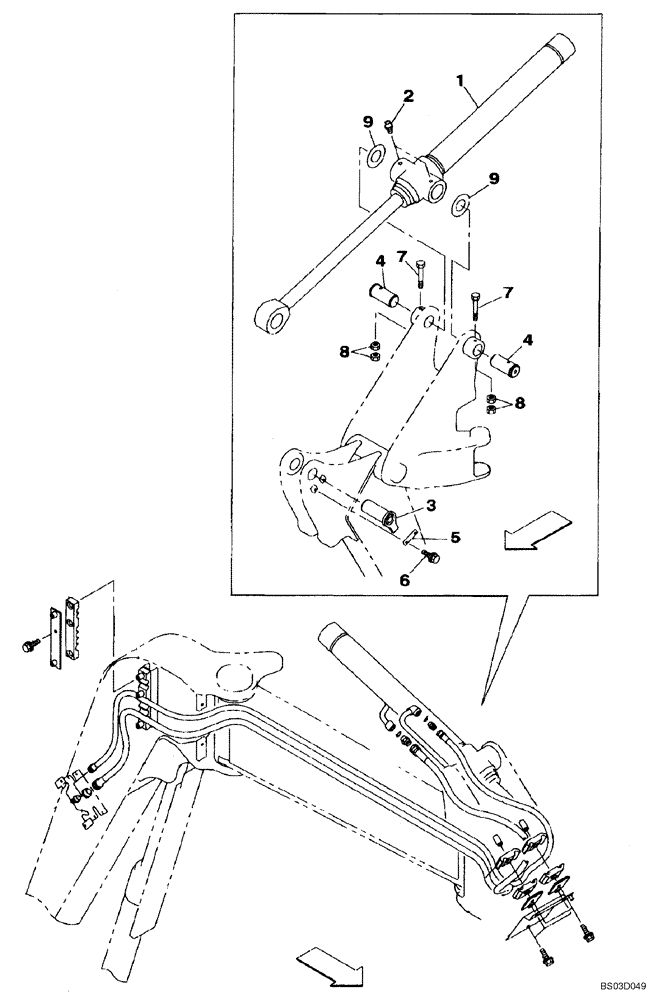

Схема запчастей Case CX75SR - (09-47) - ARM CYLINDER MOUNTING - MODELS WITH OFFSET BOOM (09) - CHASSIS/ATTACHMENTS
8
4
5
3
8
4
7
7
6
9
1
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2438

HYDRAULIC CYLINDER

Arm, Models Without Load Hold; See Figure 08-88

1шт.

1

KAV2439

HYDRAULIC CYLINDER

Arm, Models With Load Hold; See Figure 08-89

1шт.

2

153630A1

LUBE NIPPLE

Grease

2шт.

3

KAV2466

PIN

1шт.

4

168545A1

PIN

2шт.

5

KHV0456

PLATE

1шт.

6

166351A1

BOLT,Sems, M10 x 20mm

2шт.

7

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

2шт.

8

829-11412

NUT,M12 x 1.25, Cl 10

4шт.

9

168531A1

SHIM

1шт.
