(09-42A) - BOOM CYLINDER, MOUNTING - MODELS WITH OFFSET BOOM

Запчасти Case CX75SR (09-42A) - BOOM CYLINDER, MOUNTING - MODELS WITH OFFSET BOOM (09) - CHASSIS/ATTACHMENTS

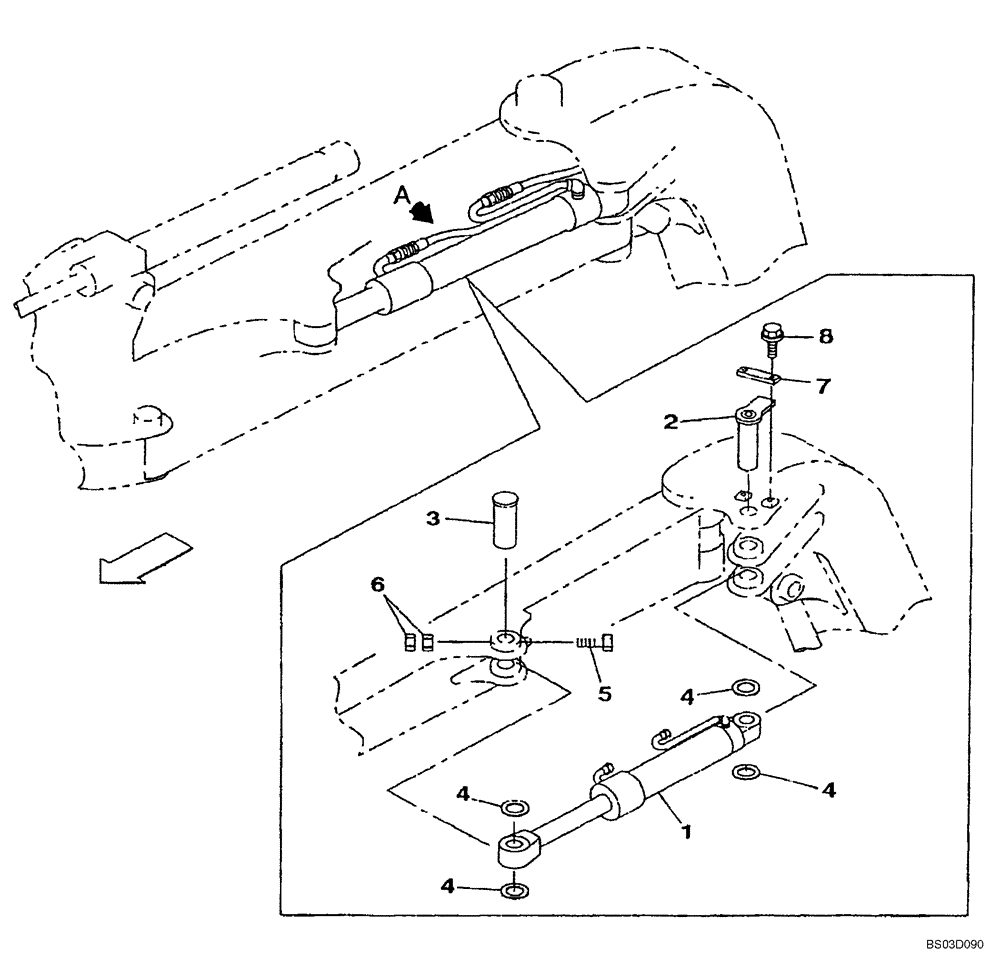

Схема запчастей Case CX75SR - (09-42A) - BOOM CYLINDER, MOUNTING - MODELS WITH OFFSET BOOM (09) - CHASSIS/ATTACHMENTS
1
5
3
6
4
4
4
2
7
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2442

HYDRAULIC CYLINDER

Boom; See Figure 08-85

1шт.

2

KAV2471

PIN

1шт.

3

KAV2472

PIN

1шт.

4

166403A1

WASHER

1шт.

5

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

1шт.

6

829-11412

NUT,M12 x 1.25, Cl 10

2шт.

7

KHV0456

PLATE

1шт.

8

166351A1

BOLT,Sems, M10 x 20mm

2шт.
