(09-42) - BOOM CYLINDER, MOUNTING - MODELS WITH LOAD HOLD

Запчасти Case CX75SR (09-42) - BOOM CYLINDER, MOUNTING - MODELS WITH LOAD HOLD (09) - CHASSIS/ATTACHMENTS

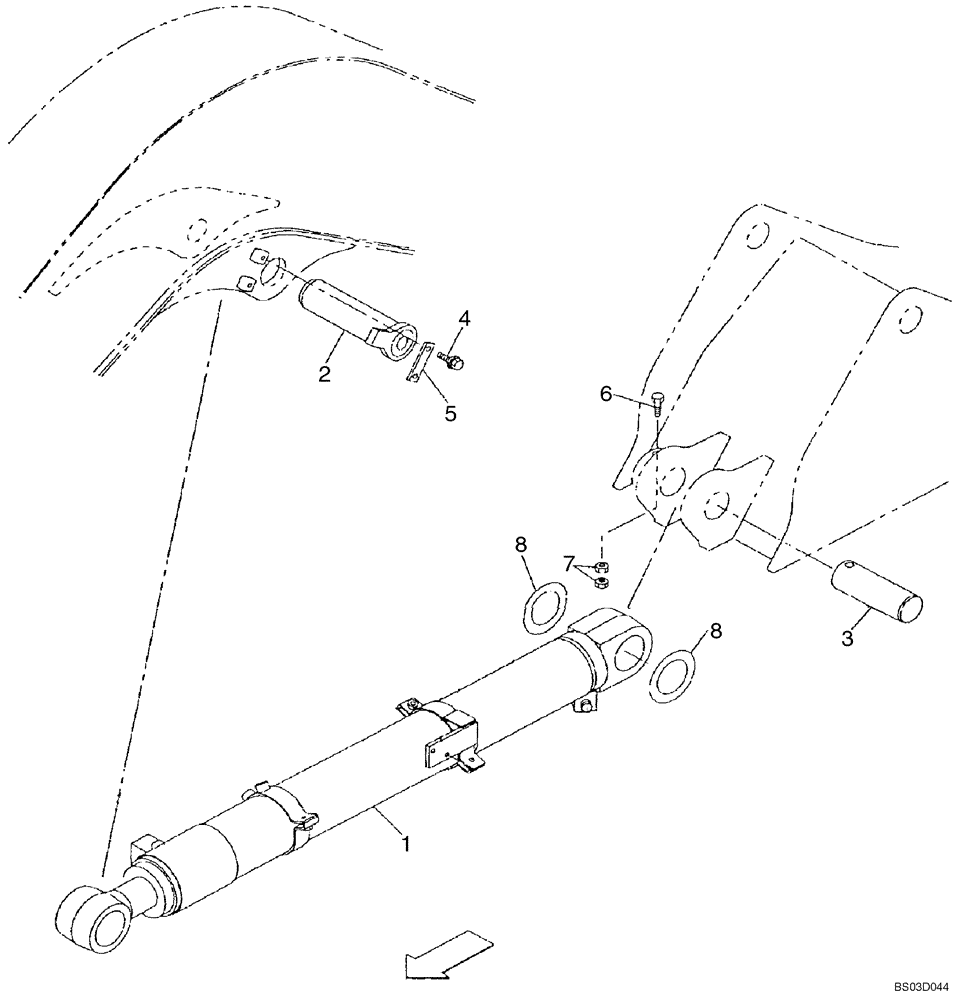

Схема запчастей Case CX75SR - (09-42) - BOOM CYLINDER, MOUNTING - MODELS WITH LOAD HOLD (09) - CHASSIS/ATTACHMENTS
7
2
8
4
1
3
6
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2435

HYDRAULIC CYLINDER

Boom; See Figure 08-84

1шт.

2

KAV2474

PIN

1шт.

3

166413A1

PIN

1шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.

5

KHV0456

PLATE

1шт.

6

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

7

829-13416

NUT,M16 x 1.5, Cl 10

2шт.

8

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

1шт.
