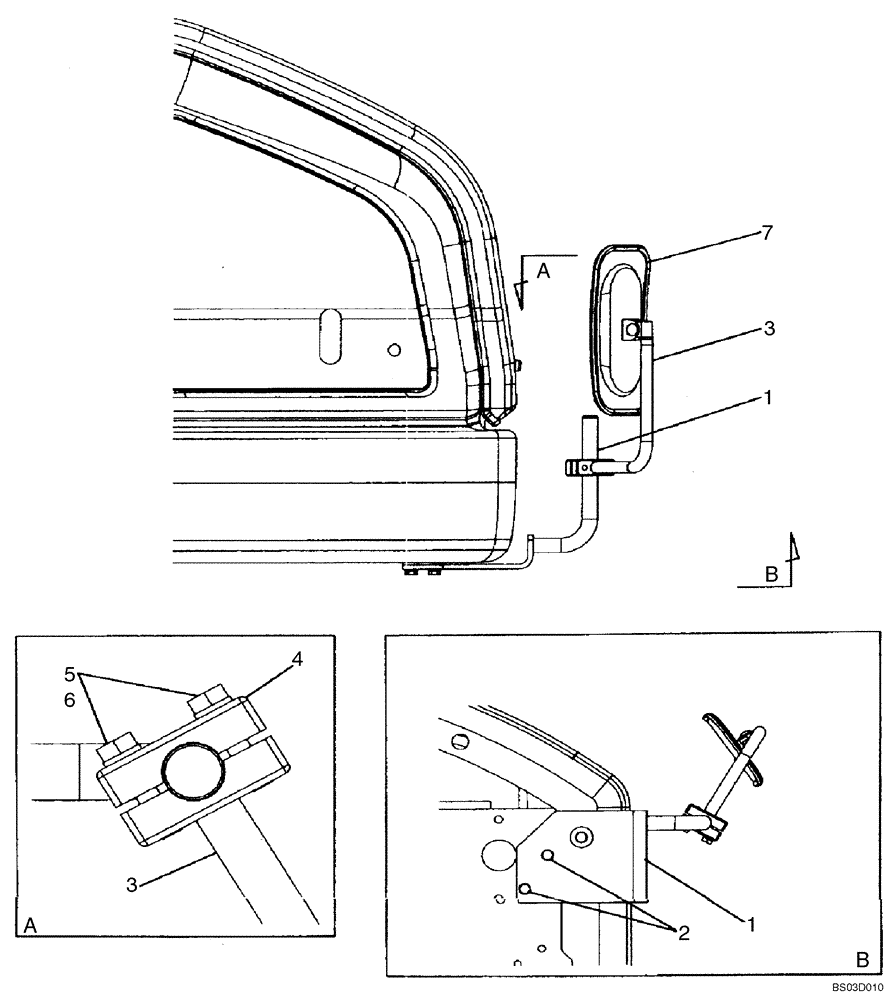

Запчасти Case CX75SR (09-33) - MIRROR, REAR VIEW - RIGHT HAND (09) - CHASSIS/ATTACHMENTS

1

KAP1495

SUPPORTING ARM

1шт.

2

KHN3009

BOLT,Spcl

2шт.

3

169337A1

MIRROR ARM

1шт.

4

169338A1

CLAMP

1шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

KHP13190

REAR VIEW MIRROR,166mm x 330mm

Replaces 151025A1

1шт.

5

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.
