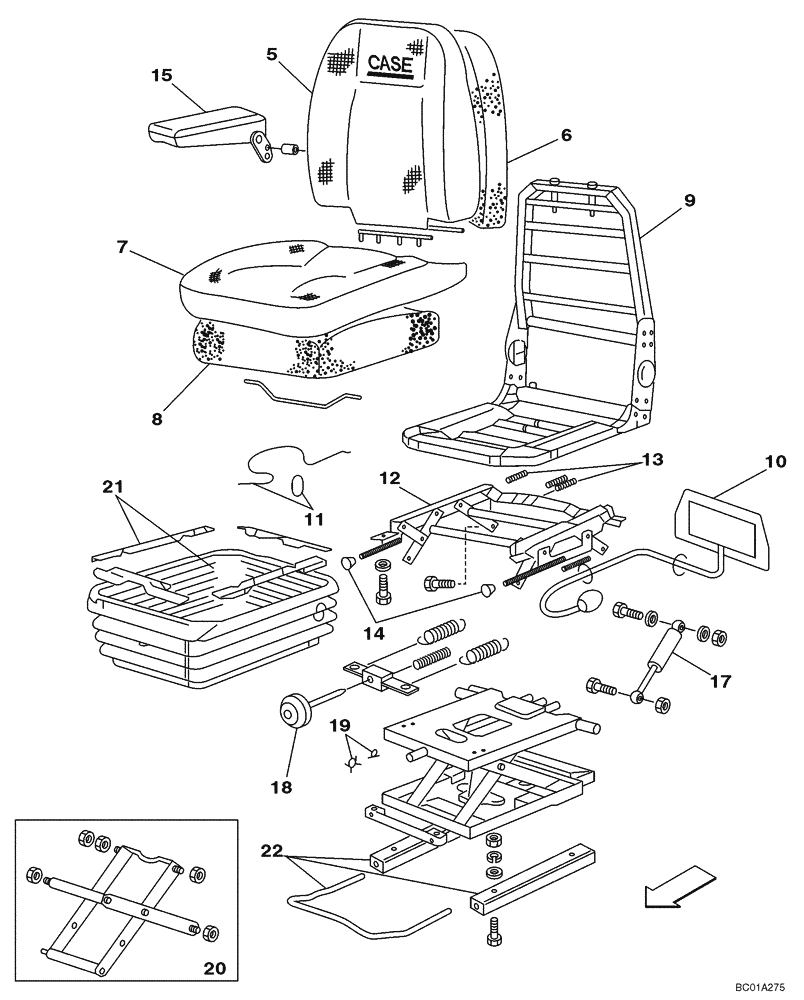

Запчасти Case CX75SR (09-32) - SEAT (09) - CHASSIS/ATTACHMENTS

KHN3244

SEAT ASSY.

Incl. 5 - 22; Also Includes Ref 2, 12, Figure 09-31

1шт.

307040A1

SEAT ASSY.

Incl. 5 - 11

1шт.

5

307042A1

DRIVER'S SEAT COVER

Backrest

1шт.

6

H4841461

FOAM

1шт.

7

F2547002

SEAT COVER

Seat Cushion

1шт.

8

J4841462

FOAM

1шт.

9

307043A1

FRAMEWORK

Frame

1шт.

10

307044A1

KIT

Backrest Adjustment

1шт.

11

D2447088

CABLE

Recliner Control

1шт.

307045A1

KIT

Incl. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Frame

1шт.

13

307046A1

KIT

1шт.

14

307047A1

SET OF PARTS

Height Adjustment

1шт.

15

KHN3250

ARMREST

Kit Includes Left and Right Hand Armrest with Hardware

1шт.

307049A1

SUSPENSION

Incl. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Suspension

1шт.

17

L4143253

SET OF PARTS

Shock Absorber

1шт.

18

B2447086

SET OF PARTS

Weight Adjustment

1шт.

19

307050A1

KIT

Stop

1шт.

20

307051A1

BEARING ASSY

Height Adjustment

1шт.

21

307052A1

KIT

Boot

1шт.

22

307053A1

KIT

Seat Slide Rails

1шт.
