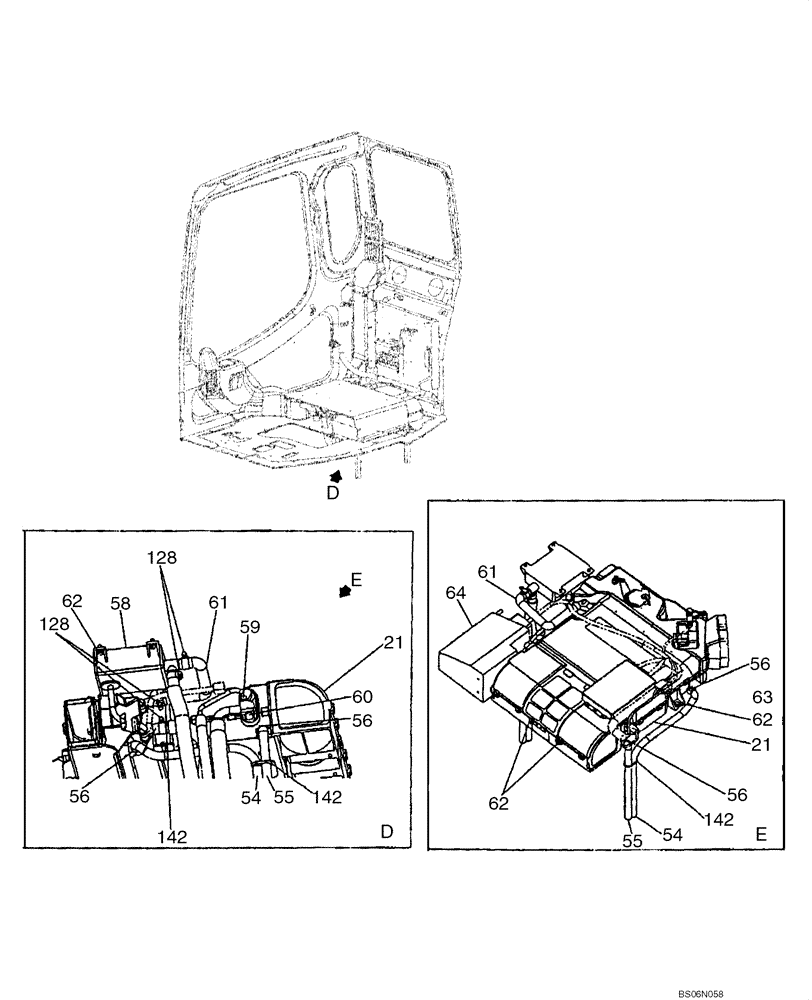

Запчасти Case CX75SR (09-22) - HEATER AND AIR CONDITIONING - INLET AND OUTLET (09) - CHASSIS/ATTACHMENTS

21

KHR4029

UNIT HEATER

See Figure 09-23

1шт.

54

KHR3530

HOSE

2шт.

55

KHR3749

HOSE

2шт.

56

159622A1

MOUNTING CLIP

4шт.

58

KHR3533

CONTROL UNIT

1шт.

59

KHR3567

BOLT,Spcl

1шт.

60

162457A1

SPECIAL BOLT,Spcl

1шт.

61

KHR3933

HOSE

1шт.

62

159602A1

BOLT,Sems, Hex, M6 x 16mm

8шт.

63

KHN0482

WASHER

2шт.

64

KHR3940

DUCT

See Figure 09-21A

1шт.

128

157271A1

CLIP

4шт.

142

150496A1

MOUNTING CLIP

3шт.
