(09-21) - HEATER AND AIR CONDITIONING - DUCTS

Запчасти Case CX75SR (09-21) - HEATER AND AIR CONDITIONING - DUCTS (09) - CHASSIS/ATTACHMENTS

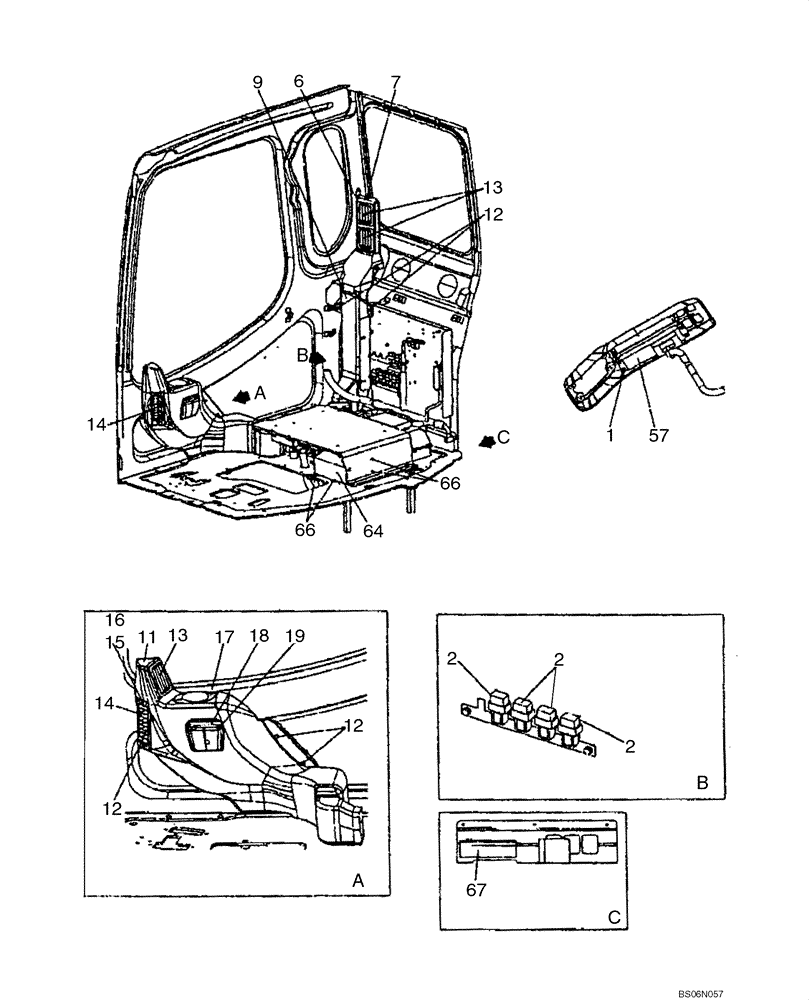

Схема запчастей Case CX75SR - (09-21) - HEATER AND AIR CONDITIONING - DUCTS (09) - CHASSIS/ATTACHMENTS
9
19
13
17
66
14
64
66
6
12
12
2
12
67
13
11
18
2
7
16
14
1
2
57
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR2737

SELF-TAP SCREW

4шт.

2

KHR3803

RELAY

4шт.

KHR3858

AIR DUCT

Incl. 6

1шт.

6

KHR3111

AIR DUCT

1шт.

7

162072A1

SCREW,Pan Hd, M6 x 10mm

3шт.

KHR3857

AIR DUCT

Incl. 9

1шт.

9

KHR3275

AIR DUCT

1шт.

KHR3910

AIR DUCT

Incl. 11

1шт.

11

KHR3911

AIR DUCT

1шт.

12

KHN2132

BOLT,Hex Flg Hd, M6 x 16

5шт.

13

KHR3112

GRILLE ASSY

3шт.

14

KHR3939

GRILLE ASSY

1шт.

15

KHR0440

SCREW

2шт.

16

KHR3913

NUT

2шт.

17

KHR3528

HOLDER

1шт.

18

KHN2967

ASH TRAY

1шт.

19

145S005S010R

SCREW,Flush Hd, M5 x 10mm

3шт.

57

KHR3929

INSTRUMENT PANEL

1шт.

64

KHR3940

DUCT

See Figure 09-21A

1шт.

66

KHN2367

BOLT

4шт.

67

KAR1490

FOAM INSULATION

1шт.
