(09-19) - CONSOLE, CONTROL - OPERATORS COMPARTMENT

Запчасти Case CX75SR (09-19) - CONSOLE, CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

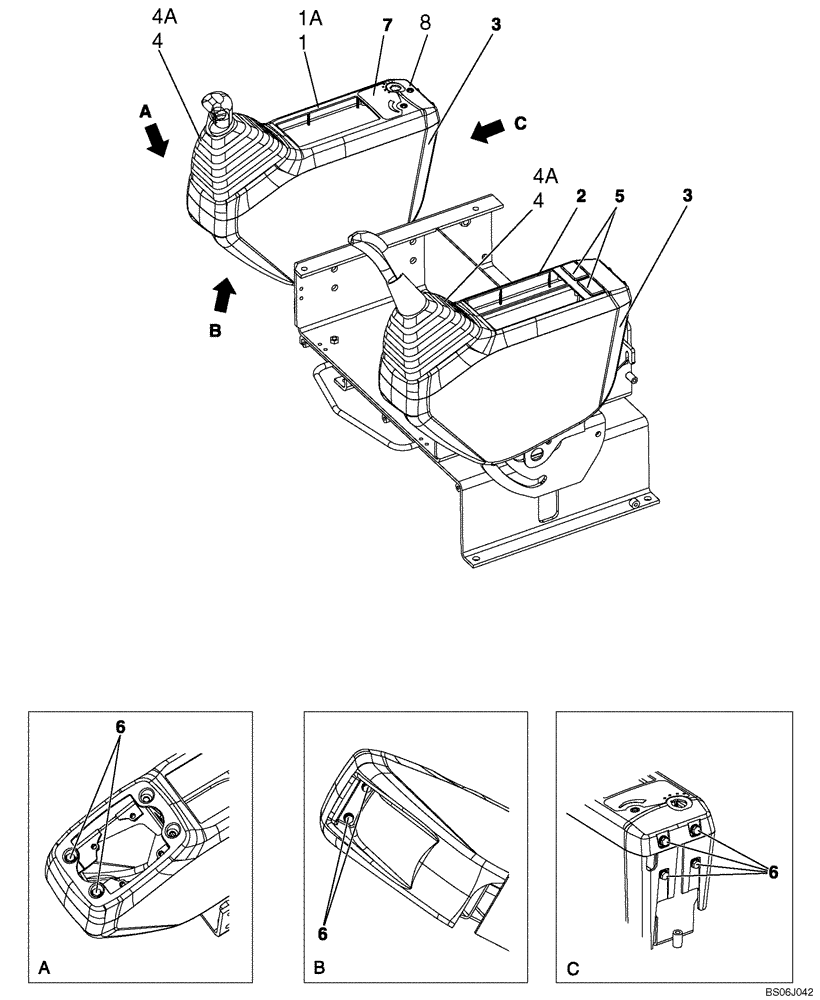

Схема запчастей Case CX75SR - (09-19) - CONSOLE, CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
8
5
6
2
7
6
3
6
4a
4a
4
1
4
1a
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN2883

COVER

Right; No Longer Available, For Service Order KHN3523 Cover And KHN3524 Plug, Ref 1A And 8

1шт.

1a

KHN3523

COVER

Right

1шт.

2

KHN2884

COVER

Left

1шт.

3

KHN2885

COVER

2шт.

4

KHN2501

BOOT

Misty Blue; If Used

2шт.

4a

KHN3585

BELLOWS

Granite Black; If Used

2шт.

5

KHR2913

CAP

1шт.

6

KHN2132

BOLT,Hex Flg Hd, M6 x 16

16шт.

7

KHN3525

PANEL

Replaces KHN3017

1шт.

8

KHN3524

PLUG

1шт.
