(09-15) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH STANDARD BOOM

Запчасти Case CX75SR (09-15) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH STANDARD BOOM (09) - CHASSIS/ATTACHMENTS

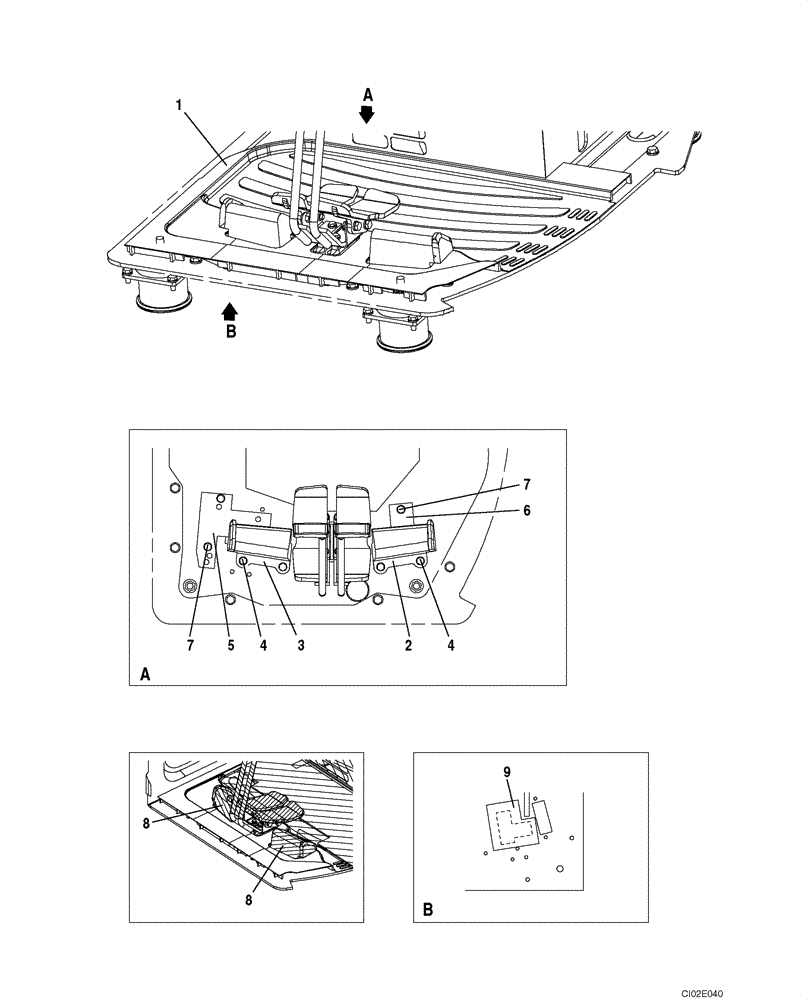

Схема запчастей Case CX75SR - (09-15) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH STANDARD BOOM (09) - CHASSIS/ATTACHMENTS
5
4
8
4
3
7
6
1
8
7
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1987

FLOOR MAT

1шт.

2

KHJ1636

FOOT REST

Left

1шт.

3

KHJ1638

FOOT REST

Right

1шт.

4

166052A1

BOLT

4шт.

5

KHJ2295

COVER

1шт.

6

KHJ2296

COVER

1шт.

7

166346A1

BOLT,Sems, M10

3шт.

8

KHP1400

COVER

2шт.

9

KHJ2405

SEAL

1шт.
