(09-11) - CONTROLS, TRAVEL - OPERATORS COMPARTMENT

Запчасти Case CX75SR (09-11) - CONTROLS, TRAVEL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

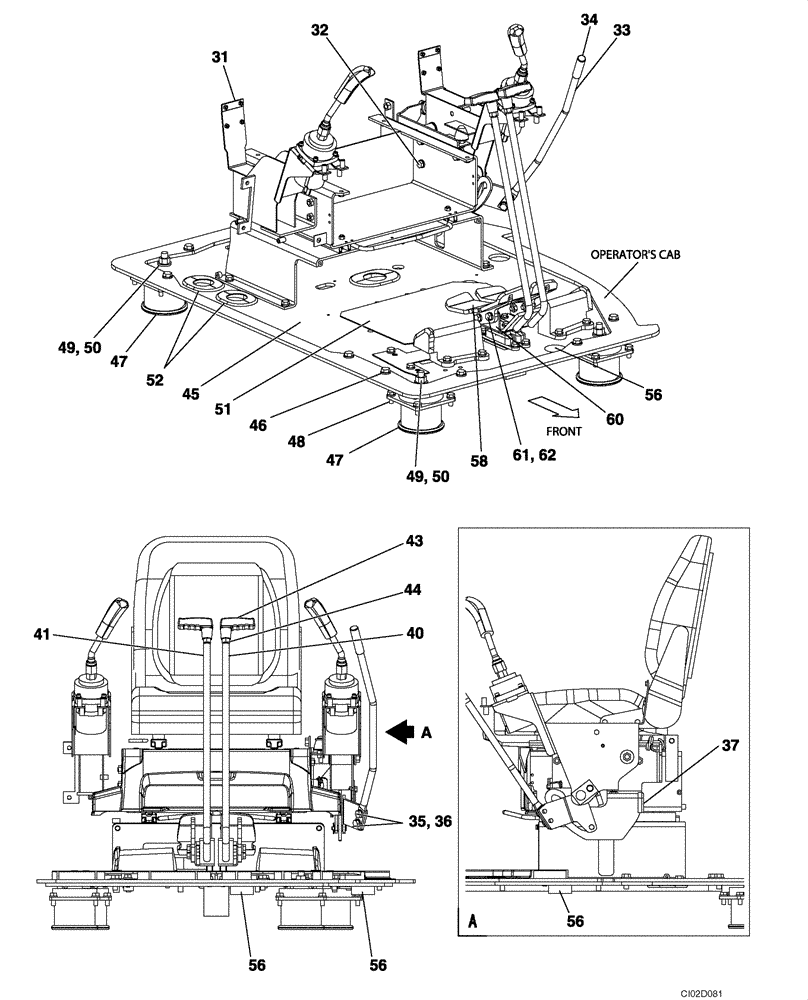

Схема запчастей Case CX75SR - (09-11) - CONTROLS, TRAVEL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
47
51
45
49, 50
49, 50
44
61, 62
56
56
58
37
43
48
34
56
46
31
47
56
33
52
32
60
41
40
35, 36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

31

KHJ1975

FRAME ASSY

1шт.

32

166347A1

BOLT,Sems, M10 x 30mm

4шт.

33

KHJ1978

CONTROL LEVER

Function Cancellation

1шт.

34

159547A1

CAP

1шт.

35

150548A1

BOLT,High Strength, Hex, M10 x 20mm

M10 x 20; 10,9

2шт.

36

150604A1

WASHER

2шт.

37

167291A1

LINING

1шт.

40

KHJ2546

CONTROL LEVER

Left Hand Travel

1шт.

41

KHJ2547

CONTROL LEVER

Right Hand Travel

1шт.

43

150347A1

KNOB

2шт.

44

150373A1

NUT

M12; 12.9

2шт.

45

KHJ2570

FLOOR

Replaces KHJ2433

1шт.

46

166352A1

BOLT

10шт.

47

KHJ1471

INSULATOR BLOCK

RUBBER BLOCK Replaces 167875A1

4шт.

48

166052A1

BOLT

16шт.

49

150714A1

WASHER

4шт.

50

150760A1

NUT

4шт.

51

KHJ19630

COVER

COVER, Replaces KHJ2420

1шт.

52

162625A1

GROMMET

2шт.

56

KHJ2404

SEAL

2шт.

58

KHJ1629

PEDAL

Travel

2шт.

60

KHJ2008

BRACKET

1шт.

61

150555A1

BOLT,High Strength, Hex, M10 x 30mm

M10 x 30; 10.9

4шт.

62

150604A1

WASHER

4шт.

63

163782A1

SKIRT COVER

Not Illustrated

2шт.
