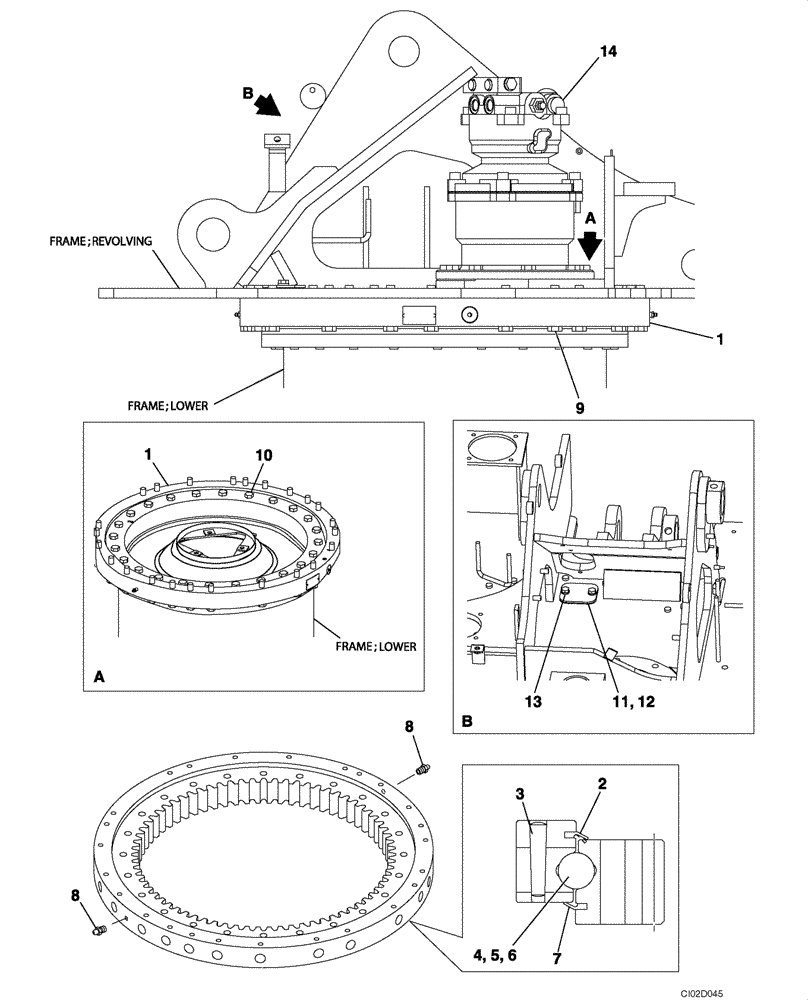

Запчасти Case CX75SR (09-01) - TURNTABLE BEARING (09) - CHASSIS/ATTACHMENTS

1

KAB0730

SLEWING RING

Incl. 2 - 8

1шт.

2

KAB0737

SEALING RING

SEALRING Incl. 3

1шт.

3

164928A1

PIN

1шт.

4

KAB0734

ROLLER

78шт.

5

KAB0735

SPACER

70шт.

6

KAB0739

SPACER

8шт.

7

KAB0738

SEALING RING

SEALRING

1шт.

8

153630A1

LUBE NIPPLE

2шт.

9

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

24шт.

10

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

24шт.

11

KAB0604

COVER

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

166351A1

BOLT,Sems, M10 x 20mm

2шт.

14

KAC0177

MOTO-REDUCTION GEAR

See Figure 08-60 - 08-62

1шт.
