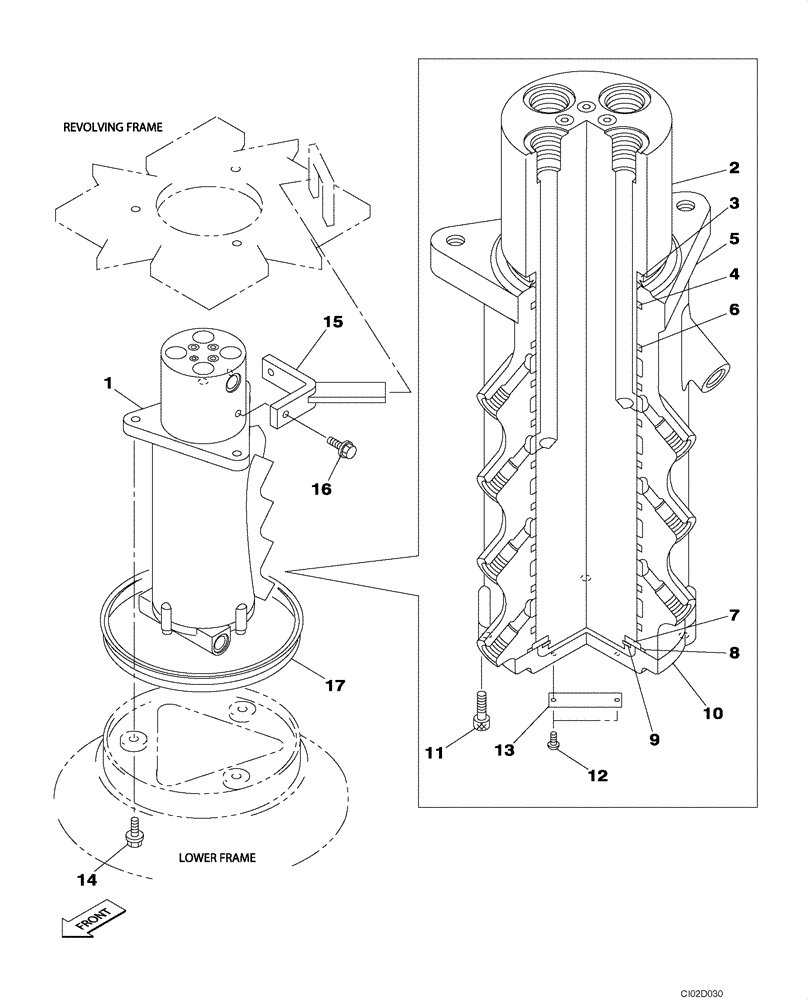

Запчасти Case CX75SR (08-63) - HYDRAULICS - JOINT, SWIVEL CENTER (08) - HYDRAULICS

1

KAA10120

HYDRAULIC SWIVEL

Incl. 2 - 13, Replaces KAA1236

1шт.

2

KAA10130

HOUSING

Replaces KAA1237

1шт.

3

KTA1092

SHAFT SEAL

1шт.

4

KHA10120

O-RING

Replaces 154712A1

1шт.

5

KAA10180

ROTOR DISTRIBUTOR

Replaces KAA1238

1шт.

6

KTA1093

SEALING RING

SEALRING

8шт.

7

KAA1125

RING

1шт.

8

SEJ0180

O-RING

1шт.

9

370A0750Z

SNAP RING

1шт.

10

KAA1124

COVER

1шт.

11

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

3шт.

12

NSS

NOT SOLD SEPARAT

Screw

2шт.

13

NSS

NOT SOLD SEPARAT

Plate

1шт.

14

166352A1

BOLT

3шт.

15

KAA10140

LOCKING BAR

Replaces KAA1209

1шт.

16

166352A1

BOLT

Replaces 166347A1

2шт.

17

KAA1224

SEALING RING

SEALRING

1шт.
