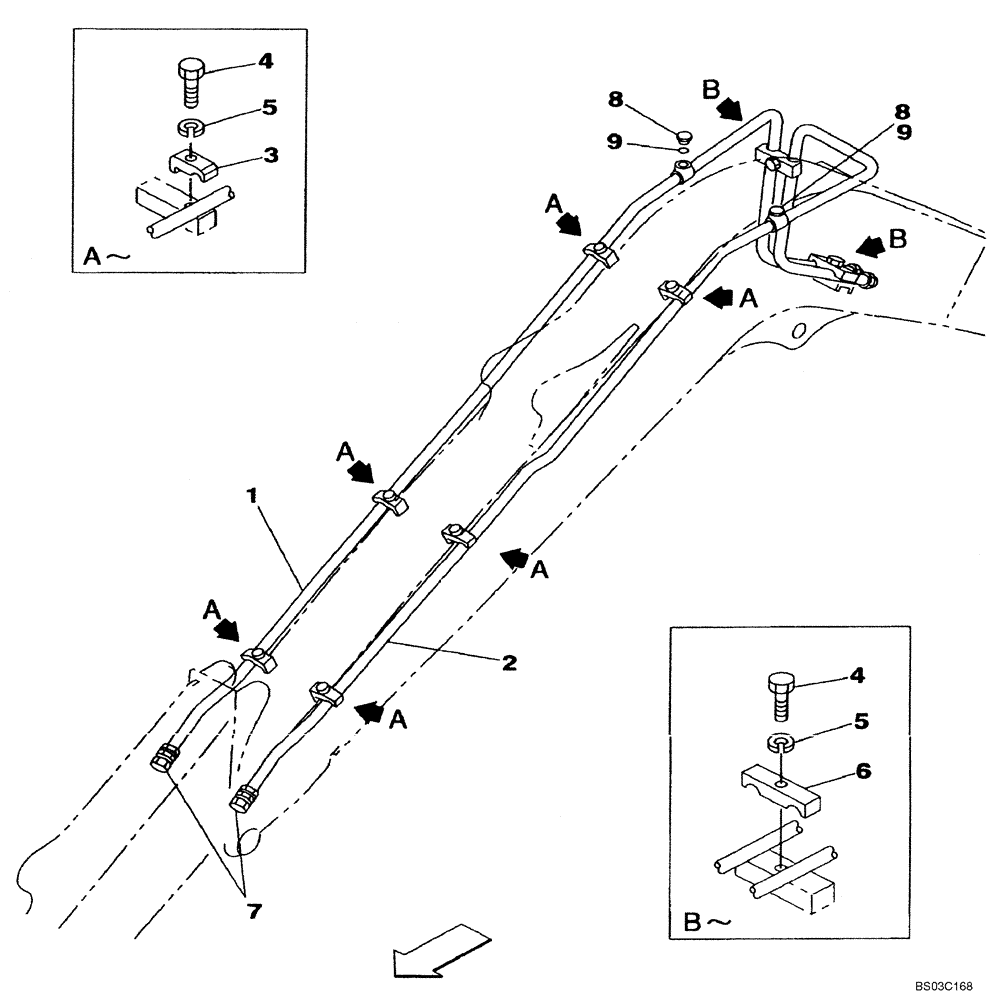

Запчасти Case CX75SR (08-53) - HYDRAULICS, AUXILIARY ATTACHMENT - STANDARD BOOM (08) - HYDRAULICS

1

KAV2522

TUBE,16.1 mm ID x 21.7 mm OD

1шт.

2

KAV2523

TUBE,16.1 mm ID x 21.7 mm OD

1шт.

3

166401A1

HALF-FLANGE

6шт.

4

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

8шт.

5

892-11012

LOCK WASHER,M12

8шт.

6

KAV0486

PIPE CLAMP

2шт.

7

153683A1

PLUG

2шт.

8

152924A1

PLUG

Incl. 9

2шт.

9

154503A1

O-RING

1шт.
