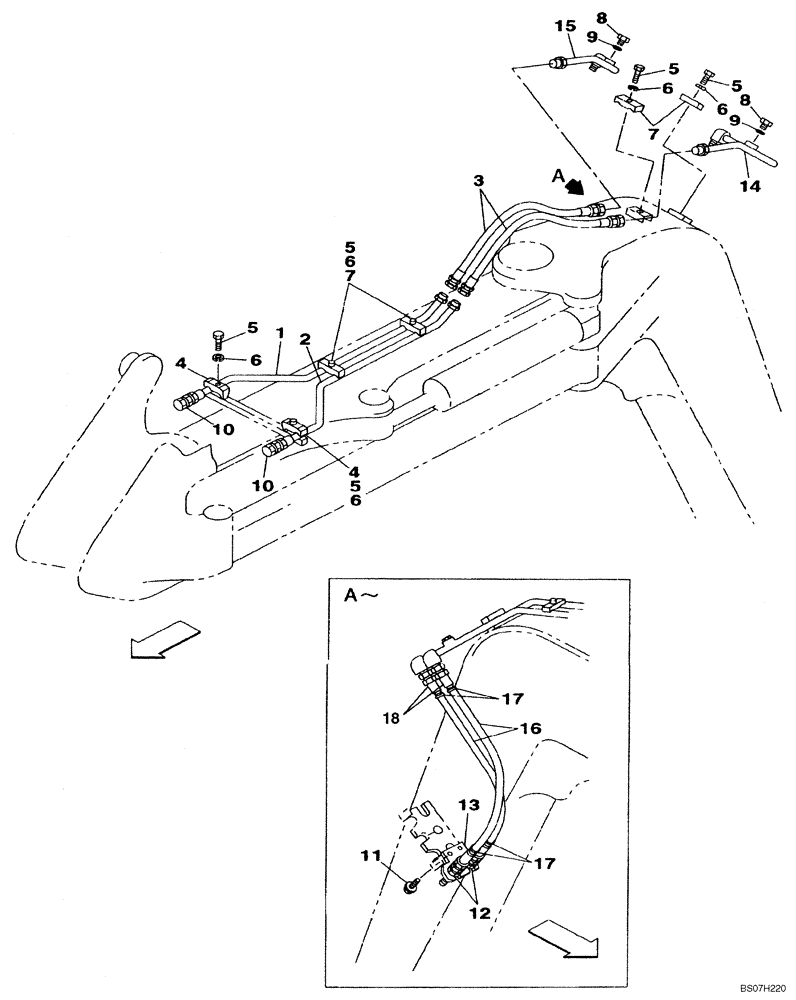

Запчасти Case CX75SR (08-52) - HYDRAULICS, AUXILIARY ATTACHMENT - OFFSET BOOM LINE (08) - HYDRAULICS

1

KAV2205

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

2

KAV2206

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

3

KMJ2323

HOSE ASSY.,15.90 mm ID x 920.00 mm

Qty. was 4

2шт.

4

166401A1

HALF-FLANGE

2шт.

5

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

6шт.

6

892-11012

LOCK WASHER,M12

6шт.

7

167824A1

COLLAR

4шт.

8

152924A1

PLUG

Incl. 9

2шт.

9

154503A1

O-RING

2шт.

10

153683A1

PLUG

2шт.

11

167182A1

BOLT,Sems, M8 x 25mm

2шт.

12

KHJ0508

FITTING

2шт.

13

KAV2199

SUPPORT

1шт.

14

KAV2204

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

15

KAV2711

HYD TUBE

Replaces KAV2203

1шт.

16

159498A1

GUARD

Hose, If Used

2шт.

17

150067A1

MOUNTING CLIP

If Used

4шт.

18

KAV2642

HYDRAULIC HOSE,15.90 mm ID x 920.00 mm

2шт.
