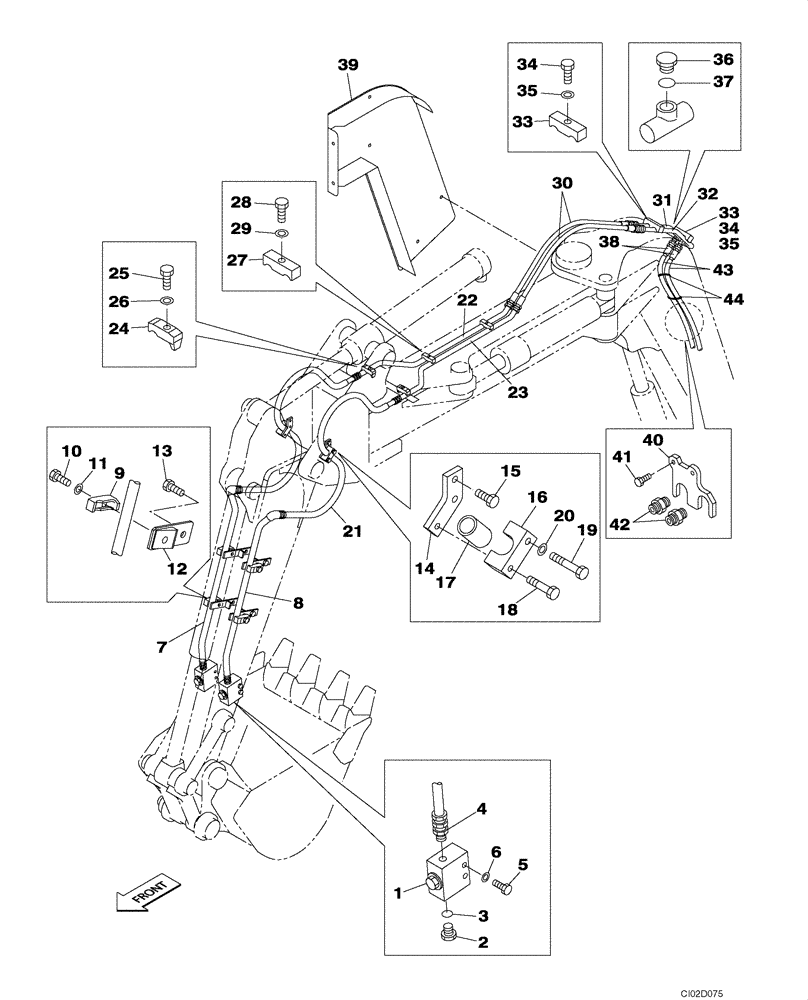

Запчасти Case CX75SR (08-47) - HYDRAULICS, AUXILIARY ATTACHMENT - OFFSET ARM (08) - HYDRAULICS

1

KHV10680

VALVE SECTION

Stop; KHV0453

2шт.

2

152924A1

PLUG

Incl. 3

2шт.

3

154503A1

O-RING

1шт.

4

167248A1

FITTING

2шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

6

183-112VR

SPRING WASHER

4шт.

7

KAV2607

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

8

KAV2608

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

9

166401A1

HALF-FLANGE

4шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

11

183-112VR

SPRING WASHER

Replaces KAV2265

4шт.

12

KAV2566

PLATE

4шт.

13

166352A1

BOLT

4шт.

14

KAV2331

SUPPORT

2шт.

15

166352A1

BOLT

2шт.

16

KAV2329

RETAINER COLLAR

2шт.

17

KHJ2023

HOSE CLAMP

2шт.

18

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

2шт.

19

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

21

KAV2364

HYDRAULIC HOSE,15.90 mm ID x 2250.00 mm

2шт.

22

KAV2205

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

23

KAV2206

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

24

166401A1

HALF-FLANGE

2шт.

25

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

26

183-112VR

SPRING WASHER

2шт.

27

167824A1

COLLAR

2шт.

28

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

29

183-112VR

SPRING WASHER

2шт.

30

KAV2642

HYDRAULIC HOSE,15.90 mm ID x 920.00 mm

Replaces KMJ2323

2шт.

31

KAV2711

HYD TUBE

Replaces KAV2203

1шт.

32

KAV2204

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

33

167824A1

COLLAR

2шт.

34

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

35

183-112VR

SPRING WASHER

2шт.

36

152924A1

PLUG

Incl. 37

2шт.

37

154503A1

O-RING

1шт.

38

KMJ2323

HOSE ASSY.,15.90 mm ID x 920.00 mm

2шт.

39

KAV2202

COVER

1шт.

40

KAV2199

SUPPORT

1шт.

41

167182A1

BOLT,Sems, M8 x 25mm

2шт.

42

KHJ0508

FITTING

2шт.

43

159498A1

GUARD

Hose, If Used

2шт.

44

150067A1

MOUNTING CLIP

If Used

1шт.
