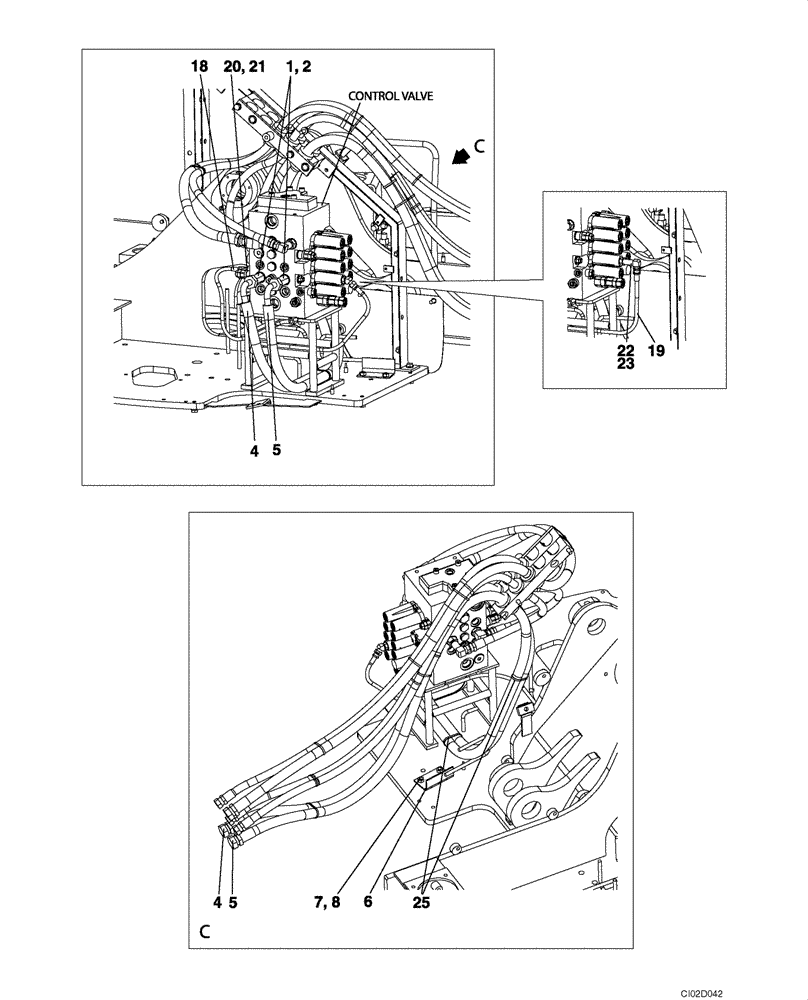

Запчасти Case CX75SR (08-46) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

1

158759A1

HYD CONNECTOR

Incl. 2

2шт.

2

154487A1

O-RING

1шт.

4

KAJ4852

HYDRAULIC HOSE

1шт.

5

KAJ4852

HYDRAULIC HOSE

1шт.

6

KAJ4919

SUPPORT

1шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

8

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

18

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

19

KHJ2069

HOSE

1шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

150933A1

ELBOW

Incl. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

150496A1

MOUNTING CLIP

2шт.
