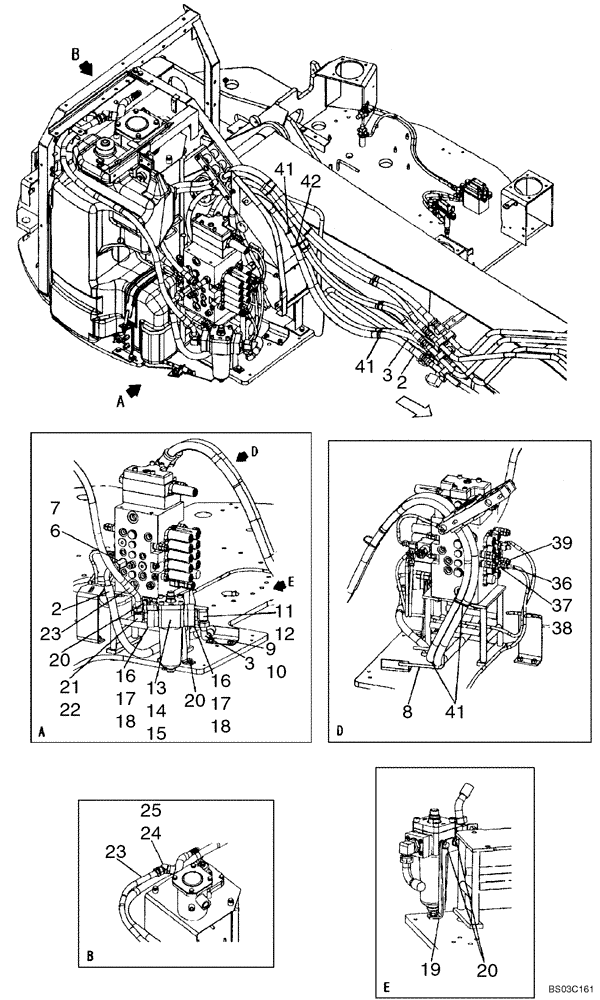

Запчасти Case CX75SR (08-39) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

2

KAJ4852

HYDRAULIC HOSE

1шт.

3

KAJ4862

HOSE ASSY.

1шт.

6

158759A1

HYD CONNECTOR

Incl. 7

1шт.

7

154487A1

O-RING

1шт.

8

KAJ4919

SUPPORT

1шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

10

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

11

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 12

1шт.

12

154503A1

O-RING

1шт.

13

163278A1

FILTER

Incl. 14, 15

1шт.

14

163279A1

HYDRAULIC OIL FILTER

1шт.

15

159706A1

INDICATOR

1шт.

16

154569A1

O-RING

2шт.

17

163275A1

FLANGE

2шт.

18

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

8шт.

19

KAJ4849

BRACKET

1шт.

20

166351A1

BOLT,Sems, M10 x 20mm

4шт.

21

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 22

1шт.

22

154503A1

O-RING

1шт.

23

KAJ4723

HOSE ASSY.

1шт.

24

157586A1

ELBOW

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

36

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

37

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

39

KAJ4877

VALVE PRESSURE RELIE

Component Parts Not Serviced Separately

1шт.

41

150496A1

MOUNTING CLIP

2шт.

42

150498A1

MOUNTING CLIP

1шт.
