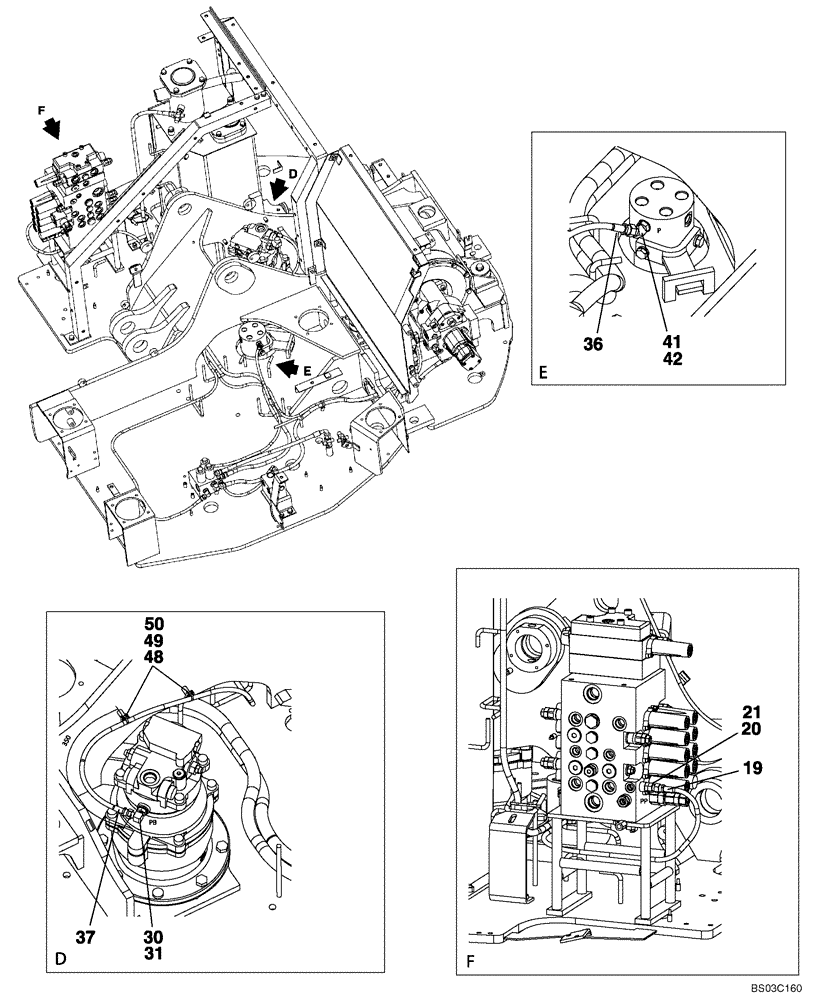

Запчасти Case CX75SR (08-38) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

19

KHJ2063

HOSE

See Figure 08-37

1шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

KHJ2049

HOSE

See Figure 08-37

1шт.

37

KHJ2066

HOSE

See Figure 08-37

1шт.

41

150933A1

ELBOW

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

150860A1

COLLAR

2шт.

49

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

50

150496A1

MOUNTING CLIP

1шт.
