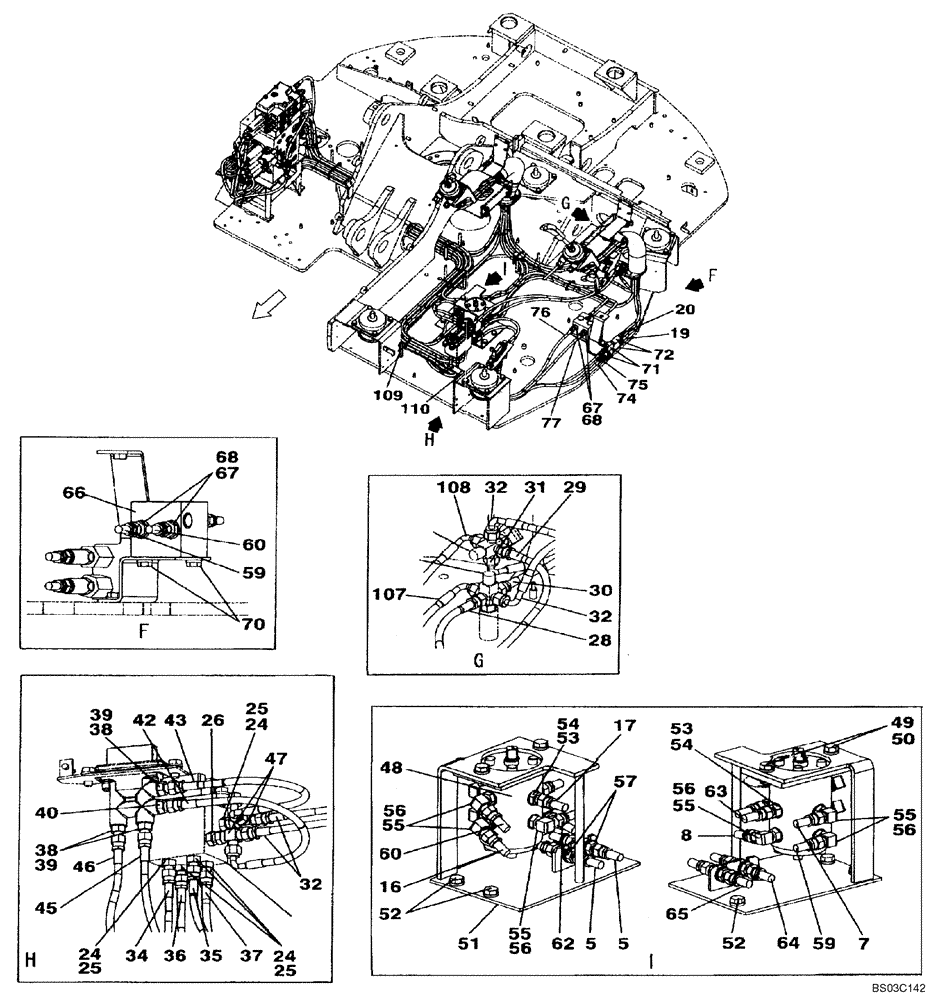

Запчасти Case CX75SR (08-35) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

5

KHJ2058

HOSE

See Figure 08-31

2шт.

7

KHJ2059

HOSE

See Figure 08-31

1шт.

8

KHJ2059

HOSE

See Figure 08-31

1шт.

16

KHJ2062

HOSE

See Figure 08-31

1шт.

17

KHJ2062

HOSE

See Figure 08-31

1шт.

19

KHJ2053

HOSE

See Figure 08-31

1шт.

20

KHJ2053

HOSE

See Figure 08-31

1шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 25

5шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

161841A1

HYD CONNECTOR

1шт.

28

KHJ2311

HOSE

See Figure 08-31

1шт.

29

KHJ2011

HOSE

See Figure 08-31

1шт.

30

KHJ2051

HOSE

See Figure 08-31

1шт.

31

KHJ2090

HOSE

See Figure 08-31

1шт.

32

KHJ2088

HOSE

1шт.

34

KHJ2255

HOSE

See Figure 08-33

1шт.

35

KHJ2069

HOSE

See Figure 08-33

1шт.

36

KHJ2312

HOSE,6mm ID x 2500mm L

See Figure 08-33

1шт.

37

KHJ2069

HOSE

See Figure 08-33

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 39

3шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

161841A1

HYD CONNECTOR

1шт.

42

KHJ2035

HOSE

1шт.

43

KHJ2035

HOSE

1шт.

45

KHJ2162

HOSE

See Figure 08-33

1шт.

46

KHJ2079

HOSE

See Figure 08-33

1шт.

47

KHJ2130

TEE

2шт.

48

KHJ2184

VALVE

Selector; See Figure 08-82

1шт.

49

167836A1

BOLT,High Strength, M10 x 25mm

2шт.

50

150409A1

WASHER

2шт.

51

KAJ4996

BRACKET

1шт.

52

166052A1

BOLT

3шт.

53

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 54

2шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 56

6шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

159481A1

ADAPTER

2шт.

59

KHJ2057

HOSE

1шт.

60

KHJ2051

HOSE

1шт.

62

KHJ2067

HOSE

See Figure 08-33

1шт.

63

KHJ2143

HOSE

1шт.

64

KHJ2312

HOSE,6mm ID x 2500mm L

See Figure 08-33

1шт.

65

KHJ2068

HOSE

See Figure 08-33

1шт.

66

KHJ2317

VALVE, CUSHION

See Figure 08-80

1шт.

67

153378A1

ADAPTER

Incl. 68

4шт.

68

154475A1

O-RING

1шт.

70

166052A1

BOLT

2шт.

71

KHJ0653

ADAPTER

2шт.

72

KHJ2314

VALVE, CUSHION

See Figure 08-81

2шт.

74

KHJ2172

HOSE

See Figure 08-33

1шт.

75

KHJ2075

HOSE

See Figure 08-33

1шт.

76

KHJ2079

HOSE

See Figure 08-33

1шт.

77

KHJ2174

HOSE

See Figure 08-33

1шт.

107

KHJ2090

HOSE

See Figure 08-31

1шт.

108

KHJ2146

HOSE

See Figure 08-31

1шт.

109

KAJ4091

RUBBER SEAL

1шт.

110

150496A1

MOUNTING CLIP

1шт.
