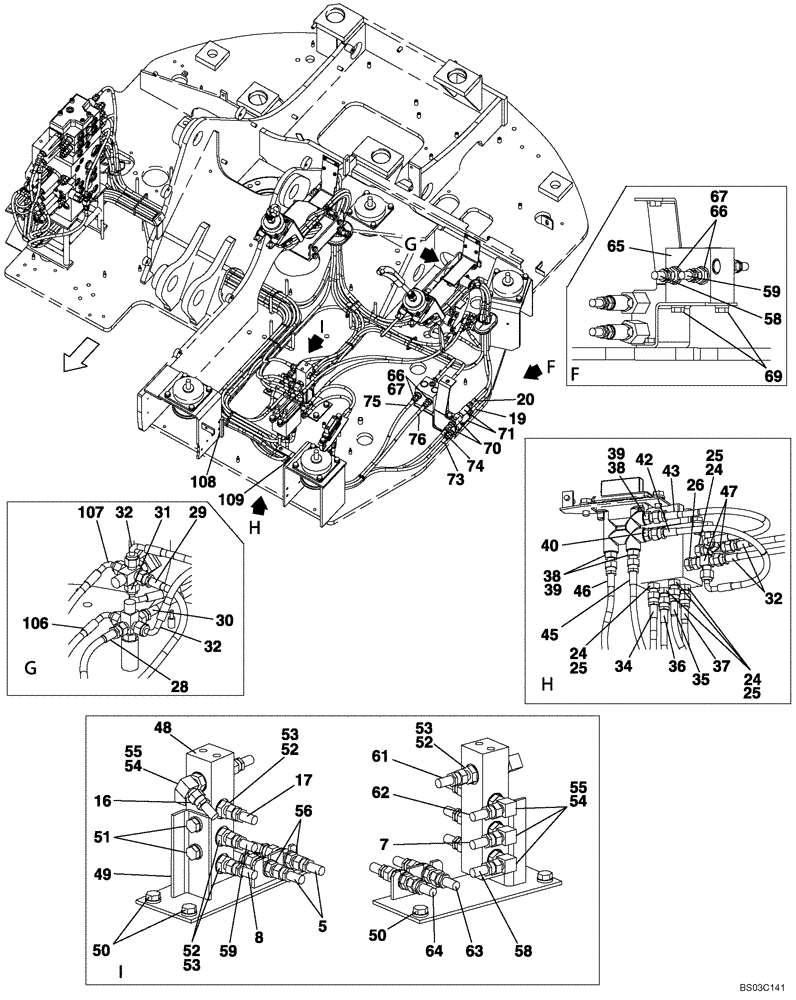

Запчасти Case CX75SR (08-34) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

5

KHJ2058

HOSE

See Figure 08-30

2шт.

7

KHJ2059

HOSE

See Figure 08-30

1шт.

8

KHJ2059

HOSE

See Figure 08-30

1шт.

16

KHJ2062

HOSE

See Figure 08-30

1шт.

17

KHJ2062

HOSE

See Figure 08-30

1шт.

19

KHJ2053

HOSE

See Figure 08-30

1шт.

20

KHJ2053

HOSE

See Figure 08-30

1шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 25

5шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

161841A1

HYD CONNECTOR

1шт.

28

KHJ2311

HOSE

See Figure 08-30

1шт.

29

KHJ2011

HOSE

See Figure 08-30

1шт.

30

KHJ2051

HOSE

See Figure 08-30

1шт.

31

KHJ2090

HOSE

See Figure 08-30

1шт.

32

KHJ2088

HOSE

1шт.

34

KHJ2255

HOSE

See Figure 08-32

1шт.

35

KHJ2069

HOSE

See Figure 08-32

1шт.

36

KHJ2312

HOSE,6mm ID x 2500mm L

See Figure 08-32

1шт.

37

KHJ2069

HOSE

See Figure 08-32

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 39

3шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

161841A1

HYD CONNECTOR

1шт.

42

KHJ2035

HOSE

1шт.

43

KHJ2035

HOSE

1шт.

45

KHJ2162

HOSE

See Figure 08-32

1шт.

46

KHJ2079

HOSE

See Figure 08-32

1шт.

47

KHJ2130

TEE

2шт.

48

KHJ2437

MANIFOLD

1шт.

49

KAJ5013

BRACKET

1шт.

50

166052A1

BOLT

3шт.

51

166351A1

BOLT,Sems, M10 x 20mm

2шт.

52

153378A1

ADAPTER

Incl. 53

4шт.

53

154475A1

O-RING

1шт.

54

156554A1

ELBOW

Incl. 55

4шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

56

159481A1

ADAPTER

1шт.

58

KHJ2057

HOSE

1шт.

59

KHJ2051

HOSE

1шт.

61

KHJ2067

HOSE

See Figure 08-32

1шт.

62

KHJ2143

HOSE

1шт.

63

KHJ2312

HOSE,6mm ID x 2500mm L

See Figure 08-32

1шт.

64

KHJ2068

HOSE

See Figure 08-32

1шт.

65

KHJ2317

VALVE, CUSHION

See Figure 08-80

1шт.

66

153378A1

ADAPTER

Incl. 67

4шт.

67

154475A1

O-RING

1шт.

69

166052A1

BOLT

2шт.

70

KHJ0653

ADAPTER

2шт.

71

KHJ2314

VALVE, CUSHION

See Figure 08-81

2шт.

73

KHJ2172

HOSE

See Figure 08-32

1шт.

74

KHJ2075

HOSE

See Figure 08-32

1шт.

75

KHJ2079

HOSE

See Figure 08-32

1шт.

76

KHJ2174

HOSE

See Figure 08-32

1шт.

106

KHJ2090

HOSE

See Figure 08-30

1шт.

107

KHJ2146

HOSE

See Figure 08-30

1шт.

108

KAJ4091

RUBBER SEAL

1шт.

109

150496A1

MOUNTING CLIP

1шт.
