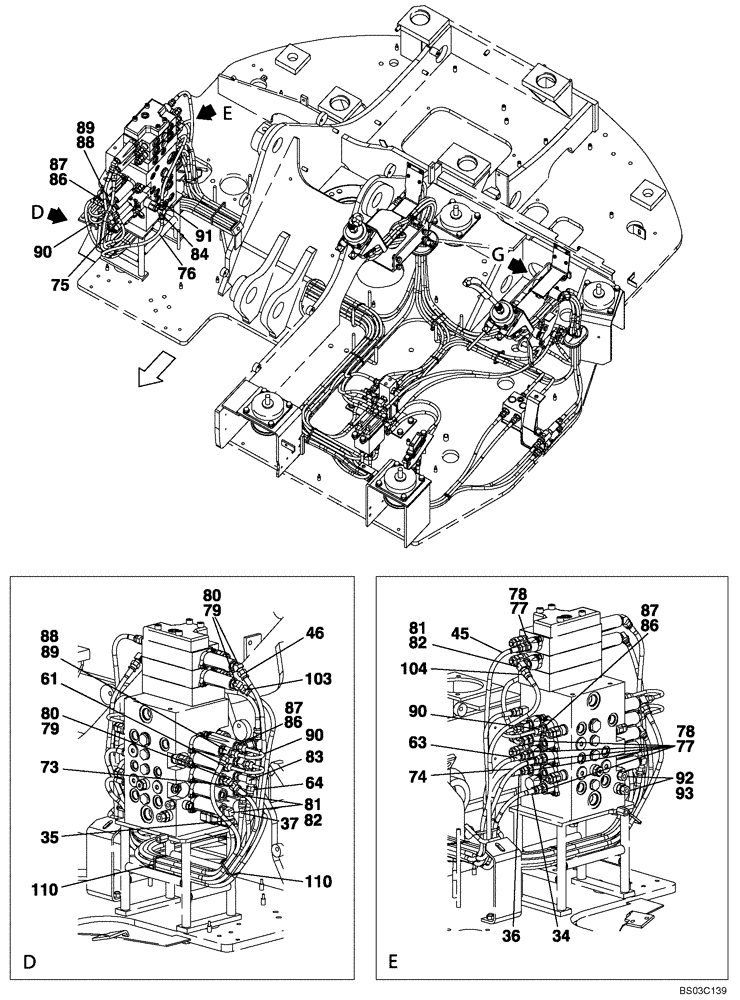

Запчасти Case CX75SR (08-32) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

34

KHJ2255

HOSE

See Figure 08-34

1шт.

35

KHJ2069

HOSE

See Figure 08-34

1шт.

36

KHJ2312

HOSE,6mm ID x 2500mm L

See Figure 08-34

1шт.

37

KHJ2069

HOSE

See Figure 08-34

1шт.

45

KHJ2162

HOSE

See Figure 08-34

1шт.

46

KHJ2079

HOSE

See Figure 08-34

1шт.

61

KHJ2067

HOSE

See Figure 08-34

1шт.

63

KHJ2312

HOSE,6mm ID x 2500mm L

See Figure 08-34

1шт.

64

KHJ2068

HOSE

See Figure 08-34

1шт.

70

KHJ0653

ADAPTER

2шт.

71

KHJ2314

VALVE, CUSHION

See Figure 08-81

2шт.

73

KHJ2172

HOSE

See Figure 08-34

1шт.

74

KHJ2075

HOSE

See Figure 08-34

1шт.

75

KHJ2079

HOSE

See Figure 08-34

1шт.

76

KHJ2174

HOSE

See Figure 08-34

1шт.

77

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 78

6шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

150933A1

ELBOW

Incl. 80

3шт.

80

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 82

3шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

KHJ1178

ELBOW

1шт.

84

167321A1

TEE

1шт.

86

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 87

3шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

KHJ2131

TEE

Incl. 89

2шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

KAJ4701

HYD TUBE,6 mm ID x 8 mm OD

3шт.

91

KHJ2180

HOSE,6.3mm ID x 500mm L

1шт.

92

159026A1

SOCKET

Incl. 93

2шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2075

HOSE

See Figure 08-30

1шт.

104

KHJ2069

HOSE

See Figure 08-30

1шт.

110

150498A1

MOUNTING CLIP

1шт.
