(08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER (WITH VALVE, PRESSURE RELIEF)

Запчасти Case CX700 (08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

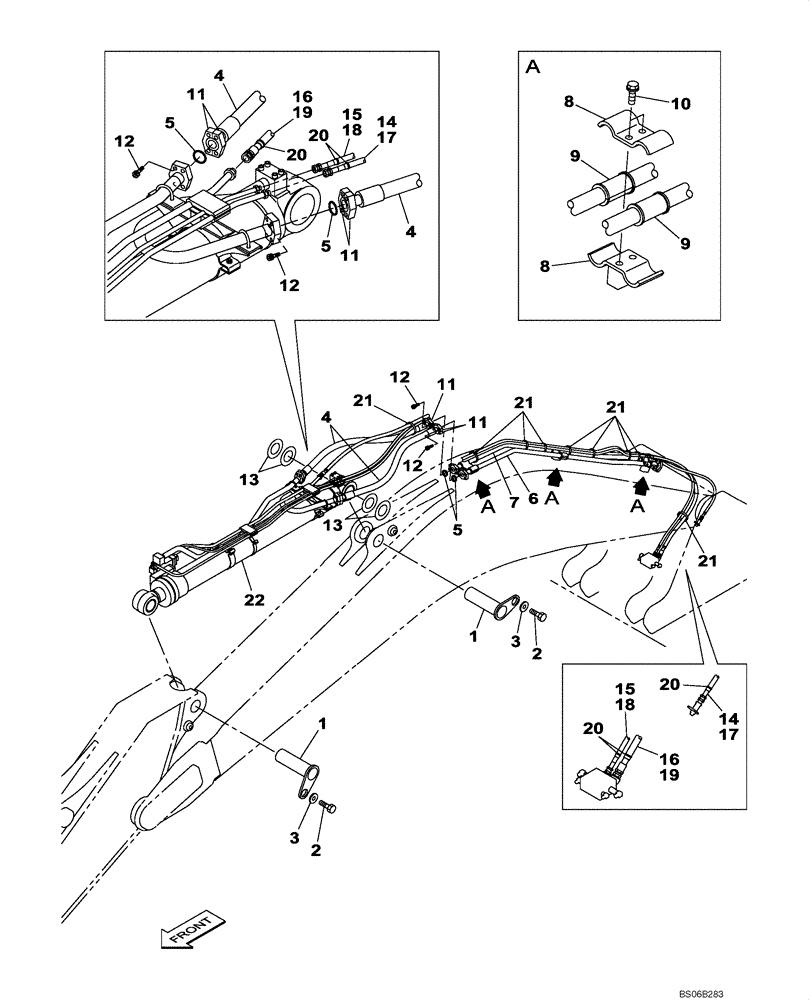

Схема запчастей Case CX700 - (08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS
14
21
15
4
19
16
1
8
2
12
20
21
7
3
17
5
4
20
5
22
9
5
12
19
11
16
12
13
6
12
13
10
14
20
9
3
18
1
11
4
11
20
15
18
2
11
17
21
21
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV0046

PIN

2шт.

2

102R020Y035R

BOLT

M20 x 35

2шт.

3

KWV0090

SPACER

2шт.

4

KWV0104

HYDRAULIC HOSE

1700 mm

2шт.

5

168211A1

O-RING

4шт.

6

KWV0057

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

7

KWV11220

HYD TUBE

1шт.

8

KWV0088

CLAMP

6шт.

9

KWV0102

GROMMET

6шт.

10

166348A1

BOLT

M16 x 45

6шт.

11

KTJ0169

FLANGE

8шт.

12

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

M16 x 50

16шт.

13

KMV1518

SHIM,0.6mm Thk

4шт.

14

KRV2635

HYDRAULIC HOSE,6300.00 mm

1шт.

15

KBV1863

HYDRAULIC HOSE,9.50 mm ID x 7000.00 mm

1шт.

16

MPV2073

HOSE ASSY.,19.00 mm ID x 6935.00 mm

1шт.

17

KHR12740

PLASTIC-RUBBER TUBE

6200 mm

1шт.

18

KHV10290

PLASTIC-RUBBER TUBE

6900 mm

1шт.

19

KHV10300

PLASTIC-RUBBER TUBE

6800 mm

1шт.

20

150067A1

MOUNTING CLIP

150 mm

1шт.

21

150071A1

MOUNTING CLIP

380 mm

1шт.

22

KWV10830

HYDRAULIC CYLINDER

Dipper; Component Parts Not Available At Time of Printing; See Figure 08-019-00 01

1шт.
