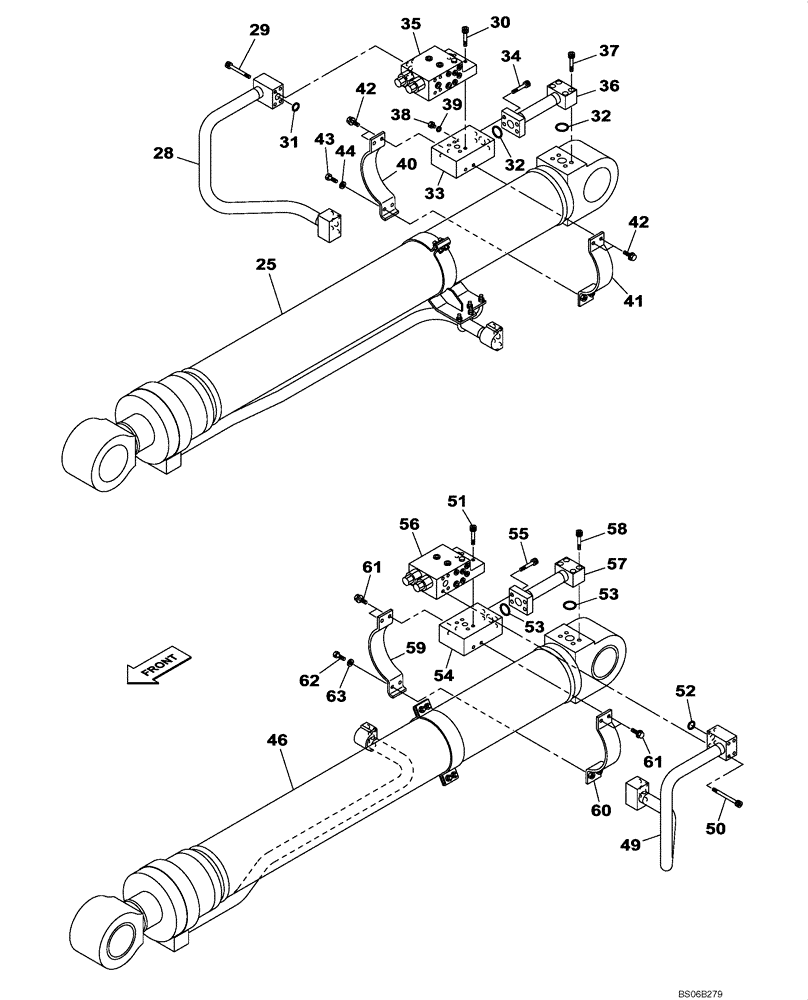

Запчасти Case CX700 (08-014-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

25

KWV10810

HYDRAULIC CYLINDER

Boom Cylinder, Right Hand; Component Parts Not Available At Time Of Printing

1шт.

28

KWV10770

HYD TUBE

1шт.

29

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

M12 x 100

4шт.

30

108R012Y065R

BOLT

M12 x 65

4шт.

31

154529A1

O-RING

1шт.

32

164450A1

O-RING

2шт.

33

KWV10760

VALVE SECTION

1шт.

34

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50

4шт.

35

KWV10650

SAFETY VALVE

See Figure 08-400-00 01

1шт.

36

KWV10790

HYD TUBE

1шт.

37

108R012Y065R

BOLT

M12 x 65

4шт.

38

153105A1

PLUG

G3/8; Incl. 39

1шт.

39

154475A1

O-RING

1шт.

40

KWV10990

CLAMP

1шт.

41

KWV11000

CLAMP

1шт.

42

166352A1

BOLT

M12 x 30

4шт.

43

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

44

150811A1

WASHER

W 12

2шт.

46

KWV10820

HYDRAULIC CYLINDER

Boom Cylinder, Left Hand; Component Parts Not Available At Time Of Printing

1шт.

49

KWV10780

HYD TUBE

1шт.

50

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

M12 x 100

4шт.

51

108R012Y065R

BOLT

M12 x 65

4шт.

52

154529A1

O-RING

1шт.

53

164450A1

O-RING

2шт.

54

KWV10760

VALVE SECTION

1шт.

55

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50

4шт.

56

KWV10650

SAFETY VALVE

See Figure 08-400-00 01

1шт.

57

KWV10790

HYD TUBE

1шт.

58

108R012Y065R

BOLT

M12 x 65

4шт.

59

KWV10990

CLAMP

1шт.

60

KWV11000

CLAMP

1шт.

61

166352A1

BOLT

M12 x 30

4шт.

62

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

63

150811A1

WASHER

W 12

2шт.
