(08-013-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (WITH VALVE, PRESSURE RELIEF)

Запчасти Case CX700 (08-013-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

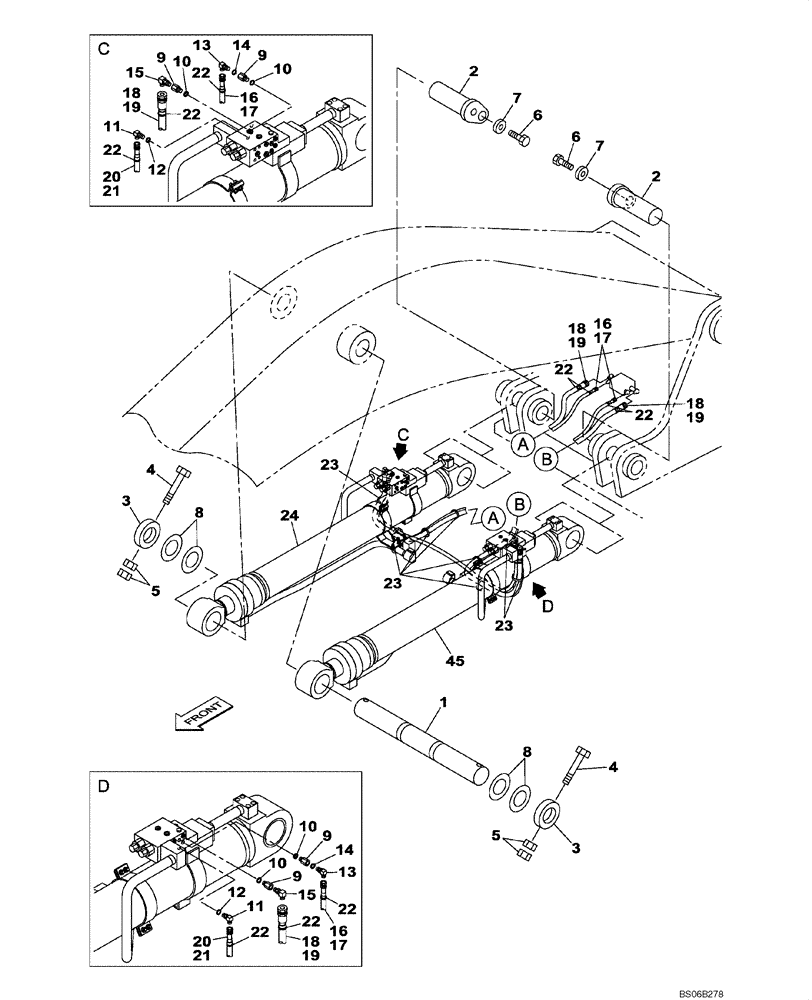

Схема запчастей Case CX700 - (08-013-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS
8
14
22
9
21
16
9
3
9
13
22
22
8
17
16
19
23
18
19
22
24
10
11
9
20
12
11
45
7
3
22
13
18
19
12
17
5
16
23
18
4
6
6
10
2
22
10
7
22
19
23
21
1
20
5
18
15
15
14
4
17
10
22
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWV0049

PIN

1шт.

2

KWV0050

PIN

2шт.

3

KWV0100

LOCKING RING

2шт.

4

132R024Y220R

BOLT,M24 x 2 x 220mm

M24 x 2 x 220

2шт.

5

829-13424

NUT,M24 x 2, Cl 10

4шт.

6

102R020Y035R

BOLT

M20 x 35

2шт.

7

KWV0090

SPACER

2шт.

8

KWV0101

ADJUSTING PLATE

1шт.

9

KHJ1584

UNION

G1/4 x G3/8; Incl. 10

4шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

11

153559A1

ELBOW

Incl. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

G3/8; Incl. 14

2шт.

14

154475A1

O-RING

2шт.

15

157937A1

ELBOW

2шт.

16

168005A1

HYDRAULIC HOSE,2300.00 mm

2шт.

17

KHV10270

PLASTIC-RUBBER TUBE

2200 mm

2шт.

18

KSV1228

HYDRAULIC HOSE,12.70 mm ID x 2300.00 mm

2шт.

19

166126A1

PLASTIC-RUBBER TUBE

2200 mm

2шт.

20

KHJ10330

HYDRAULIC HOSE,9.52 mm ID x 1950.00 mm

1шт.

21

KHV10250

PLASTIC-RUBBER TUBE

1900 mm

1шт.

22

150067A1

MOUNTING CLIP

150 mm

1шт.

23

150071A1

MOUNTING CLIP

380 mm

1шт.

24

KWV10810

HYDRAULIC CYLINDER

Boom Cylinder, Right Hand; Component Parts Not Available At Time Of Printing; See Figure 08-014-00 01

1шт.

45

KWV10820

HYDRAULIC CYLINDER

Boom Cylinder, Left Hand; Component Parts Not Available At Time Of Printing; See Figure 08-014-00 01

1шт.
