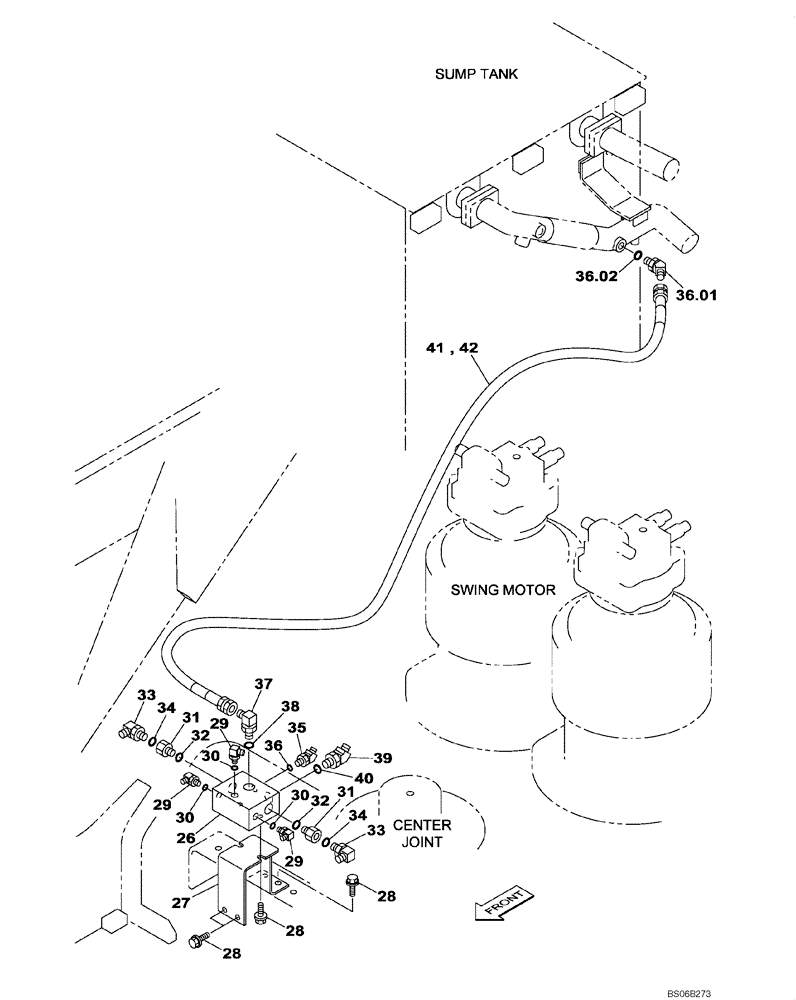

Запчасти Case CX700 (08-008-01[01]) - HYDRAULIC CIRCUIT - LEAK-OFF RETURN (WITH VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

26

KWJ11070

VALVE SECTION

1шт.

27

KWJ0069

SUPPORT

1шт.

28

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

29

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

G 3/8; Incl. 29

3шт.

30

154475A1

O-RING

3шт.

31

159198A1

ADAPTER

Incl. 32

2шт.

32

154503A1

O-RING

1шт.

33

157936A1

ELBOW

Incl. 34

2шт.

34

154503A1

O-RING

1шт.

35

157584A1

ELBOW

G 3/8; Incl. 36

1шт.

36

154475A1

O-RING

1шт.

36.01

157586A1

ELBOW

Incl. 36.02

1шт.

36.02

154503A1

O-RING

1шт.

37

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

G 3/4; Incl. 38

1шт.

38

154503A1

O-RING

1шт.

39

157586A1

ELBOW

G 3/4; Incl. 40

1шт.

40

154503A1

O-RING

1шт.

41

KWJ11080

HYDRAULIC HOSE

2600 mm

1шт.

42

157870A1

PLASTIC-RUBBER TUBE

2500 mm

1шт.
