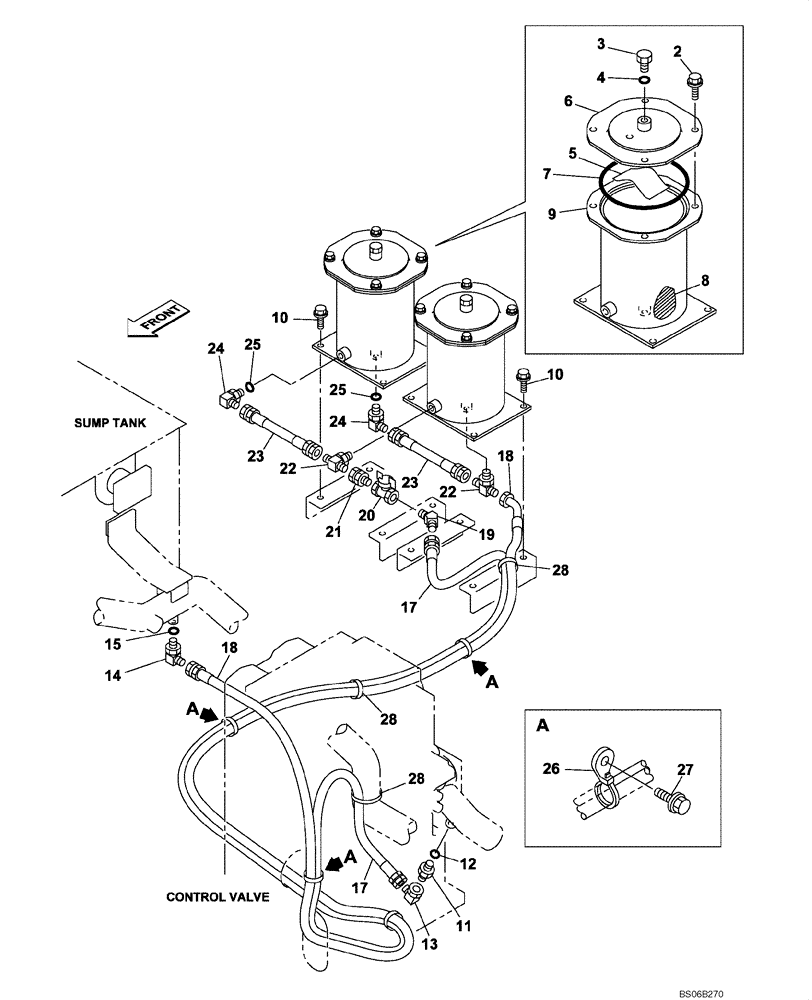

Запчасти Case CX700 (08-006-00[01]) - HYDRAULIC CIRCUIT - OIL FILTER (08) - HYDRAULICS

2

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

8шт.

3

159285A1

PLUG

Incl. 4

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1588

SPRING

2шт.

6

KHJ1564

COVER

2шт.

7

KHJ1404

O-RING

2шт.

8

159282A1

HYDRAULIC OIL FILTER

2шт.

9

KHJ2592

HOUSING

2шт.

10

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

8шт.

11

159848A1

ORIFICE

Incl. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

163814A1

ELBOW

G 1/4

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl.15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ1766

HOSE

3200 mm

1шт.

18

KHJ10070

HYDRAULIC HOSE

3600 mm

1шт.

19

153599A1

ADAPTER

1шт.

20

158923A1

DRAIN VALVE

1шт.

21

153601A1

ADAPTER

1шт.

22

167321A1

TEE

G1/4 x G1/4

2шт.

23

KHJ2419

HYDRAULIC HOSE,6.30 mm ID x 270.00 mm

2шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

G 1/4; Incl. 25

2шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

26

KHR2584

CLAMP

3шт.

27

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

28

150071A1

MOUNTING CLIP

1шт.
