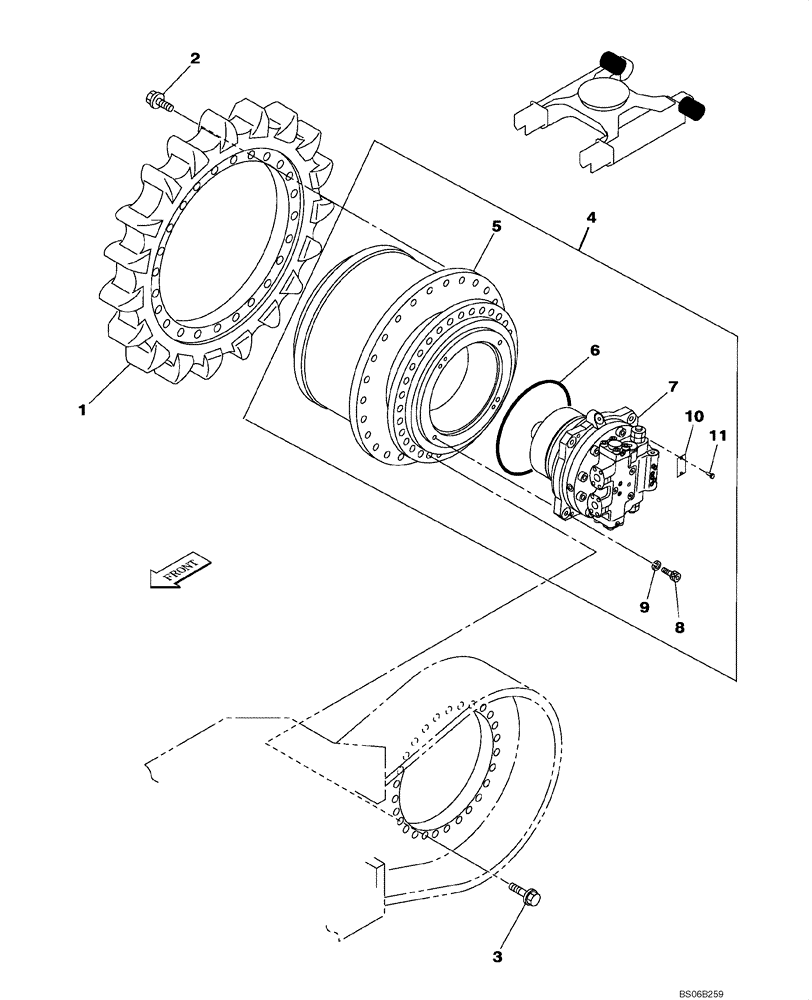

Запчасти Case CX700 (06-001-00[01]) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN

1

KWA0021

SPROCKET

2шт.

2

105R024Y080R

BOLT

M24 x 80

52шт.

3

166477A1

BOLT,Sems, M24 x 90mm

M24 x 90

64шт.

4

KWA0017

MOTO-REDUCTION GEAR

Incl. 5 - 11

2шт.

5

KWA0019

REDUCER

See Figure 06-010-00 01

1шт.

6

151524A1

O-RING

1шт.

7

KWA0018

HYDRAULIC MOTOR

See Figure 06-004-00 01, 06-005-00 01

1шт.

8

108R018Y055R

BOLT

M18 x 55

4шт.

9

182-018SR

WASHER

W18

4шт.

10

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

11

NSS

NOT SOLD SEPARAT

Screw

2шт.
