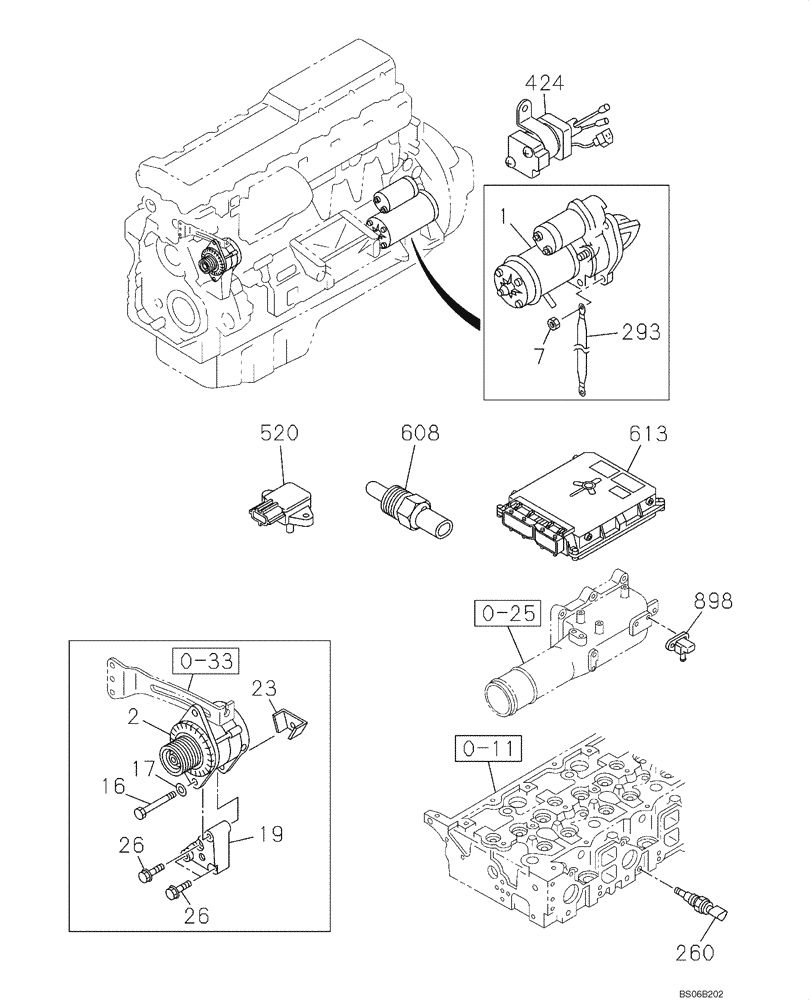

Запчасти Case CX700 (04-060-01[01]) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

0-11

REF

INSTRUCTION

See Figure 02-011-01

1шт.

0-25

REF

INSTRUCTION

See Figure 02-025-01

1шт.

0-33

REF

INSTRUCTION

See Figure 02-033-01

1шт.

1

426652A1

STARTING MOTOR

7.0KW; See Figure 04-065-01

1шт.

2

426829A1

ALTERNATOR,50A, W/ Pulley

50A; See Figure 04-066-01

1шт.

7

426270A1

NUT

M14

3шт.

16

87386229

BOLT

M14 x 123

1шт.

17

426397A1

WASHER,14mm ID x 26mm OD x 2.3mm Thk

1шт.

19

426655A1

SUPPORT

Replaces 87386230

1шт.

23

437982A1

SUPPORT

1шт.

26

288635A1

BOLT

M10 x 60

1шт.

260

87386231

SENSOR

Water Temperature

1шт.

293

87386234

CABLE ASSY.

1шт.

424

167624A1

RELAY,24V

Starter

1шт.

520

87379337

SENSOR

Pressure

1шт.

608

87378549

SENSOR

Temperature

1шт.

613

87590089

ECU

Replaces 87361317, 87548691, 87588736

1шт.

613

84169244R

REMAN ELECT CONTROL

CX700 CRAWLER EXCAVATOR TIER 3 (NA) (3/06-), Reman for New PN 87590089

1шт.

613

84169244C

CORE-ELECTRONIC CONT

Return Number

1шт.

898

87379342

SENSOR

Boost

1шт.
