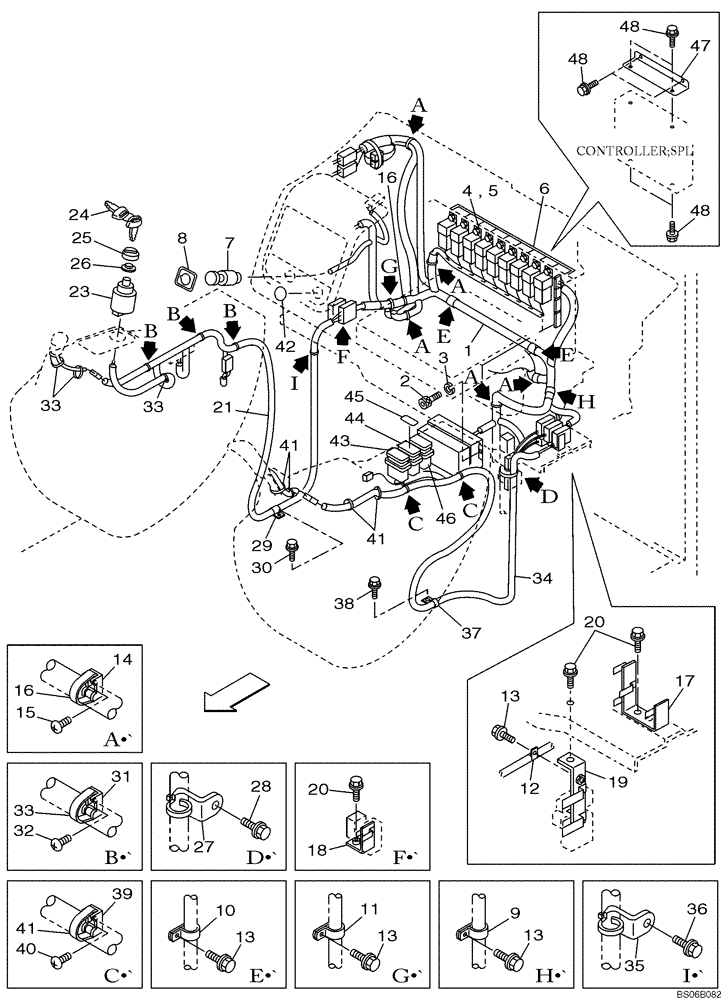

Запчасти Case CX700 (04-004-00[01]) - OPERATORS COMPARTMENT ELECTRIC CIRCUIT (04) - ELECTRICAL SYSTEMS

1

KHR13130

WIRE HARNESS

1шт.

2

108R006Y020R

BOLT

M6 x 20

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

159919A1

RELAY

8шт.

5

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16

8шт.

6

KHP1937

DECAL

1шт.

7

KHR2488

LIGHTER, CIGARETTE

1шт.

8

KHR3141

PROTECTOR

1шт.

9

159149A1

COLLAR

1шт.

10

157807A1

COLLAR

2шт.

11

157806A1

COLLAR

1шт.

12

159150A1

COLLAR

1шт.

13

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16

5шт.

14

150860A1

COLLAR

5шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

16

150067A1

MOUNTING CLIP

150 mm

6шт.

17

KHR4304

BRACKET

1шт.

18

KHR2747

BRACKET

1шт.

19

KHR13420

SUPPORT

1шт.

20

166345A1

BOLT

M8 x 16

3шт.

21

KHR4306

HARNESS

1шт.

22

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Incl. 23 - 26, Replaces KHR3270

1шт.

23

KHR3078

IGNITION SWITCH

1шт.

24

KHR20070

IGNITION KEY

KEY, CASE, Replaces 150979A1

2шт.

25

KHR3080

CAP

1шт.

26

KHR3081

WASHER

1шт.

27

KHR2580

CLAMP

1шт.

28

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

M6 x 25

1шт.

29

157806A1

COLLAR

1шт.

30

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12

1шт.

31

150860A1

COLLAR

3шт.

32

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

33

150067A1

MOUNTING CLIP

150 mm

5шт.

34

KHR4302

HARNESS

1шт.

35

KHR2580

CLAMP

1шт.

36

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

M6 x 25

1шт.

37

159150A1

COLLAR

1шт.

38

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12

1шт.

39

150860A1

COLLAR

2шт.

40

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

41

150067A1

MOUNTING CLIP

150 mm

1шт.

42

KHR2743

CAP COVER

1шт.

43

KHR3718

SWITCH

1шт.

44

KHR15280

SWITCH

Replaces KHR4247

1шт.

45

KHP10850

DECAL

If Used

1шт.

46

KHR3196

SWITCH

Travel Alarm

1шт.

47

KHR4303

BRACKET

1шт.

48

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16

6шт.
