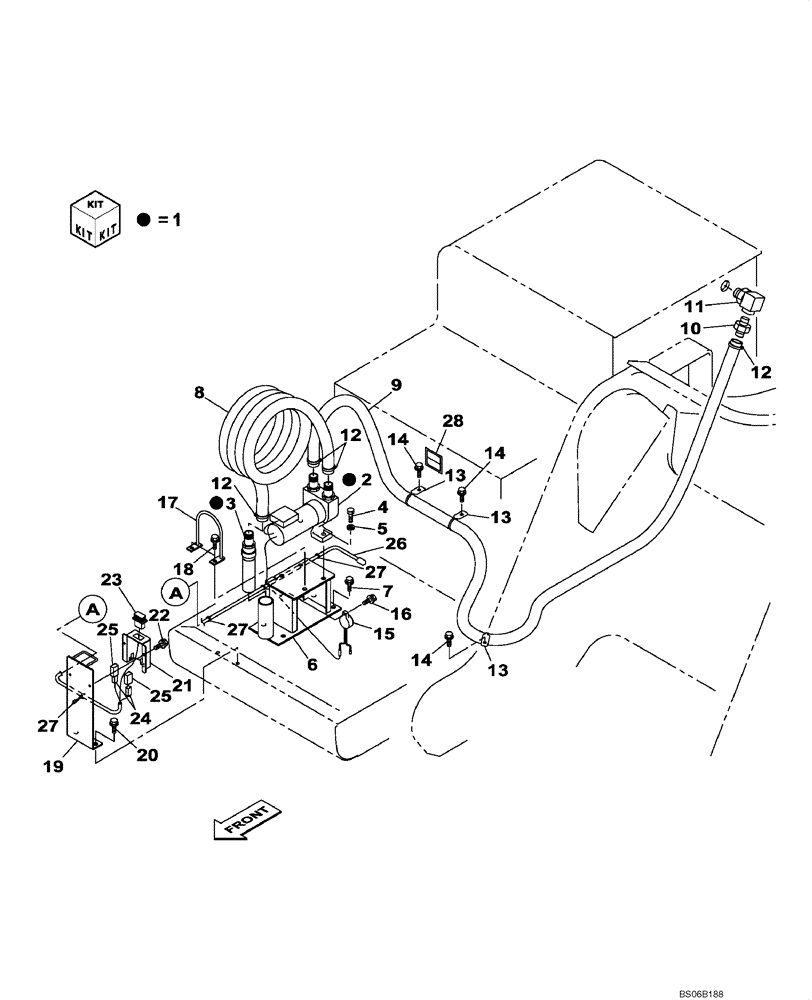

Запчасти Case CX700 (03-003-00[01]) - FUEL FILLING PUMP (03) - FUEL SYSTEM

1

KHR11750

FUEL PUMP

Incl. 2, 3

1шт.

2

KHR11800

FUEL PUMP

1шт.

3

KHR11810

SOLENOID VALVE

1шт.

4

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

5

150811A1

WASHER

W12

2шт.

6

KHR12030

BRACKET

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

8

KHR12000

FUEL HOSE

5000 mm

1шт.

9

KHR12010

FUEL HOSE

3600 mm

1шт.

10

KHR11820

LUBE NIPPLE

1шт.

11

KHR11830

ELBOW

1шт.

12

150881A1

CLIP,ELECTRICAL

4шт.

13

KHR2581

CLAMP

3шт.

14

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

15

KHR4024

ALARM

1шт.

16

KHR1832

SPECIAL BOLT

M5 x 25

1шт.

17

KHR12070

BRACKET

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

19

KHR12080

BRACKET

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

21

KHR11510

COVER

1шт.

22

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12

2шт.

23

KHR12900

SWITCH

1шт.

24

KHR3802

RELAY

24V

2шт.

25

159904A1

COVER

2шт.

26

KHR12060

WIRE HARNESS

1шт.

27

KHR2787

CLAMP

4шт.

28

168103A1

DECAL

1шт.
