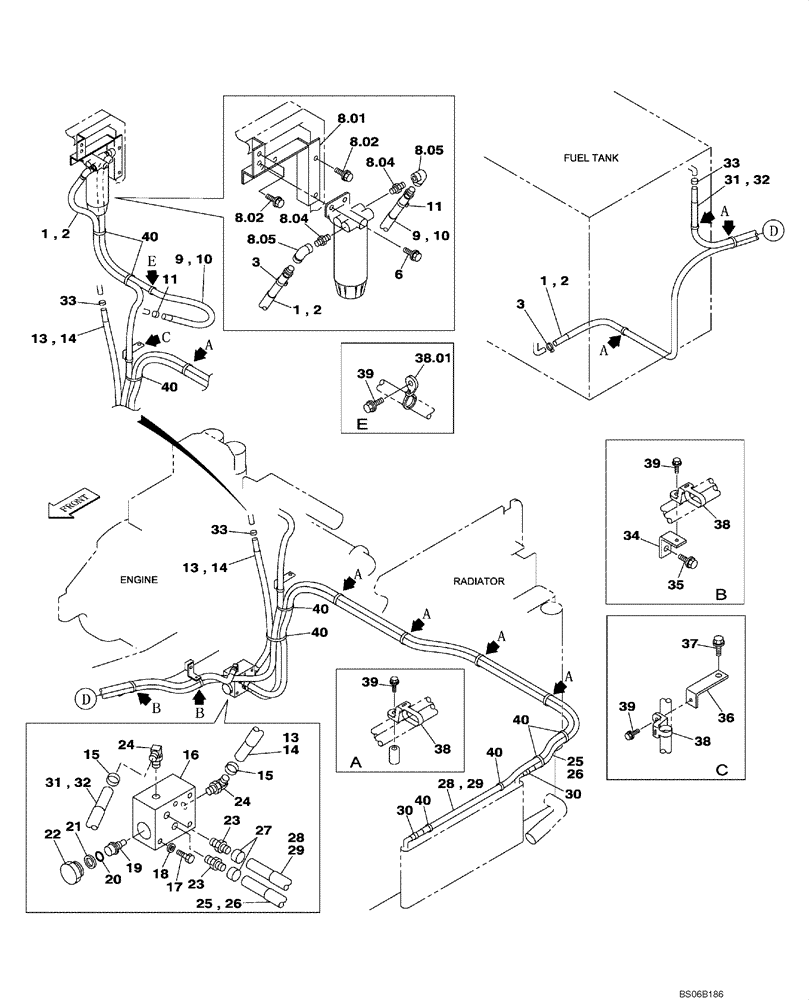

Запчасти Case CX700 (03-001-00[01]) - FUEL SYSTEM (03) - FUEL SYSTEM

1

KHH10690

FUEL HOSE,5200.00 mm

1шт.

2

157872A1

PLASTIC-RUBBER TUBE

4800 mm

1шт.

3

157915A1

CLAMP

2шт.

6

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

2шт.

8

KHH12550

FILTER ASSY

Not Illustrated - Incl 8-1

1шт.

8-1

KHH12560

FUEL FILTER

1шт.

8.01

KWH10120

SUPPORT

1шт.

8.02

166352A1

BOLT

M12 x 30

4шт.

8.04

150848A1

NIPPLE, LUBE

NIPPLE

2шт.

8.05

157857A1

ELBOW

2шт.

9

KHH10700

FUEL HOSE,1500.00 mm

1шт.

10

150441A1

PLASTIC-RUBBER TUBE

1300 mm

1шт.

11

157913A1

CLAMP

2шт.

13

KHH11130

HYDRAULIC HOSE,13.00 mm ID x 1000.00 mm

Replaces KHH10380

1шт.

14

150433A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 600 mm Length

Replaces 150488A1

1шт.

15

157913A1

CLAMP

Replaces KHH0405

2шт.

15a

KHH0417

SPACER

Not Illustrated

1шт.

16

KHH0537

MANIFOLD

1шт.

17

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

M10 x 90

4шт.

18

150409A1

WASHER

W M10

4шт.

19

KBH0950

VALVE

1шт.

20

KHH0498

O-RING

1шт.

21

KBH0953

O-RING

1шт.

22

162335A1

PLUG

1шт.

23

KHH0538

ADAPTER

2шт.

24

KHH0539

ELBOW

2шт.

25

KHH10200

FUEL HOSE,2800.00 mm

1шт.

26

158068A1

PLASTIC-RUBBER TUBE

2500 mm

1шт.

27

KHH0405

MOUNTING CLIP

2шт.

28

KHH10220

FUEL HOSE

1шт.

29

162635A1

TUBE

3300 mm

1шт.

30

KHH0405

MOUNTING CLIP

2шт.

31

KHH0526

FUEL HOSE,2800.00 mm

1шт.

32

158068A1

PLASTIC-RUBBER TUBE

2500 mm

1шт.

33

KHH0405

MOUNTING CLIP

2шт.

34

KWH0065

SUPPORT

2шт.

35

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

36

KWH0066

SUPPORT

1шт.

37

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

38

KHR2581

CLAMP

14шт.

38.01

KHR2584

CLAMP

1шт.

39

KHJ1215

BOLT,Spcl

M8 x 25

15шт.

40

150496A1

MOUNTING CLIP

1шт.
