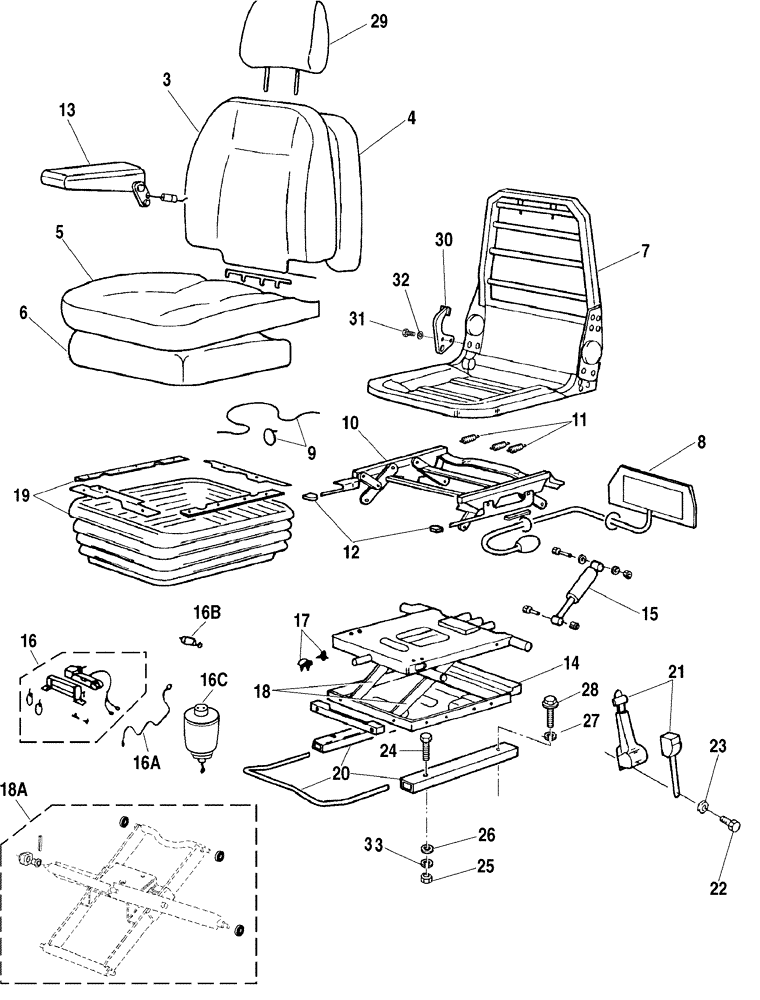

Запчасти Case CX700 (09-030-02[01]) - SEAT, AIR SUSPENSION (13) - CHASSIS/ATTACHMENTS

1

87344703

DRIVER SEAT

1шт.

Consists Of Ref. Numbers 3 To 33

1шт.

3

87350972

SEAT COVER

1шт.

4

H4841461

FOAM

1шт.

5

87350973

SEAT COVER

1шт.

6

J4841462

FOAM

1шт.

7

307043A1

FRAMEWORK

1шт.

8

307044A1

KIT

1шт.

9

D2447088

CABLE

1шт.

307045A1

KIT

1шт.

Consists Of Ref. Numbers 10, 11, 12

1шт.

10

NSS

NOT SOLD SEPARAT

Support

1шт.

11

307046A1

KIT

1шт.

12

307047A1

SET OF PARTS

1шт.

Set Of 2

1шт.

13

307048A1

ARMREST ASSY.

1шт.

Right And Left

1шт.

14

C8728203

SUSPENSION

1шт.

Consists Of Ref. Numbers 15, 16, 16C, 17, 18, 18A

1шт.

15

P3836988

SHOCK ABSORBER

1шт.

16

X4743587

COMPRESSOR

1шт.

16a

T8946281

SET OF PARTS

1шт.

Right And Left

1шт.

16b

87555545

KIT

1шт.

16c

V2540231

AIR TANK

1шт.

17

307050A1

KIT

1шт.

18

S8946280

SET OF PARTS

1шт.

18a

R8946279

SUSPENSION

1шт.

19

S5141436

BELLOWS

1шт.

20

307053A1

KIT

1шт.

21

304621A1

SAFETY BELT

1шт.

Consists Of Ref. Numbers 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

Screw

2шт.

23

NSS

NOT SOLD SEPARAT

Washer

2шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

892-11008

LOCK WASHER,8mm ID

2шт.

28

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

M8 x 20; 12.9

2шт.

29

87350977

SEAT HEADREST

1шт.

30

KHN3003

LOCKING DEVICE

1шт.

31

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

1шт.

32

150811A1

WASHER

M12

1шт.

33

183-108VR

SPRING WASHER

2шт.
