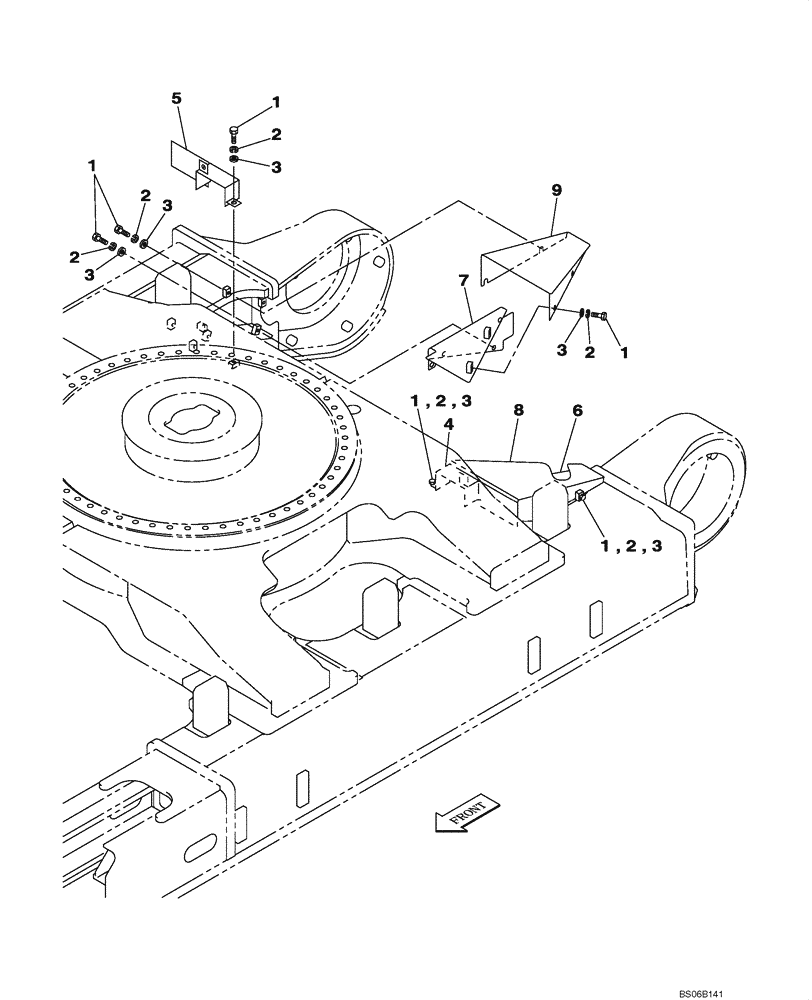

Запчасти Case CX700 (05-012-00[01]) - PIPES PROTECTION - UNDERCARRIAGE (11) - TRACKS/STEERING

1

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

20шт.

2

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

20шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W16

20шт.

4

KWA0088

COVER

1шт.

5

KWA0089

COVER

1шт.

6

KWA0090

COVER

1шт.

7

KWA0091

COVER

1шт.

8

KWA0092

COVER

1шт.

9

KWA0093

COVER

1шт.
