(09-402-00[01]) - DECALS - WARNING

Запчасти Case CX700 (09-402-00[01]) - DECALS - WARNING (09) - CHASSIS/ATTACHMENTS

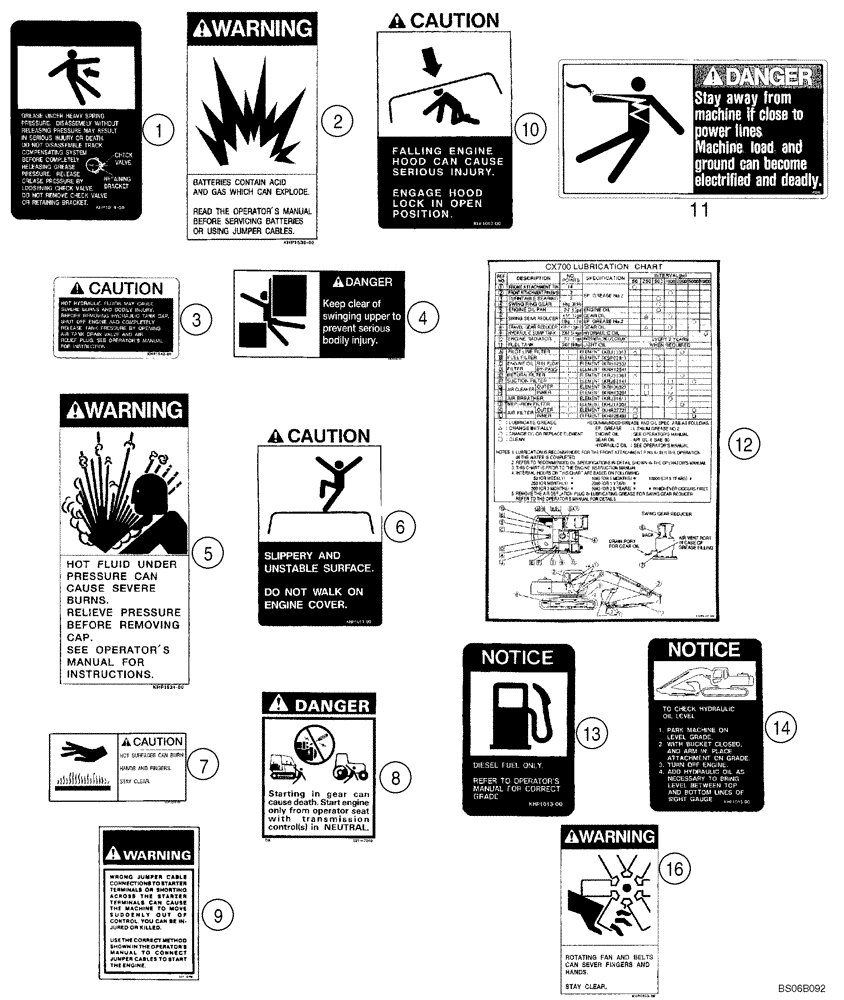

Схема запчастей Case CX700 - (09-402-00[01]) - DECALS - WARNING (09) - CHASSIS/ATTACHMENTS
2
7
10
14
11
1
8
5
3
6
12
4
16
13
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

167327A1

WARNING DECAL

Grease Under Heavy Spring Pressure

2шт.

2

KHP1536

WARNING DECAL

Batteries Contain Acid and Explosive Gas

1шт.

3

KHP1542

WARNING DECAL

Hot Liquid Hazard

1шт.

4

KHP1532

WARNING DECAL

Keep Clear

2шт.

5

KHP1534

WARNING DECAL

Hot Fluid Under Pressure

1шт.

6

KHP1011

DECAL

Slippery

1шт.

7

KHP1535

WARNING DECAL

Hot Surfaces

2шт.

8

321-7040

DANGER DECAL

Starting in gear

1шт.

9

321-6872

DECAL

Jumper Cables

1шт.

10

KHP1010

DECAL

Falling Engine Hood

1шт.

11

167324A1

WARNING DECAL

Danger, Stay Away From Machine If Close To Power Lines

1шт.

12

KWP10140

DECAL

Lubrication Chart

1шт.

13

167326A1

WARNING DECAL

Diesel Fuel

1шт.

14

167328A1

DECAL

Check Hydraulic Fluids

1шт.

16

KHP1533

WARNING DECAL

Rotating Fan

1шт.
