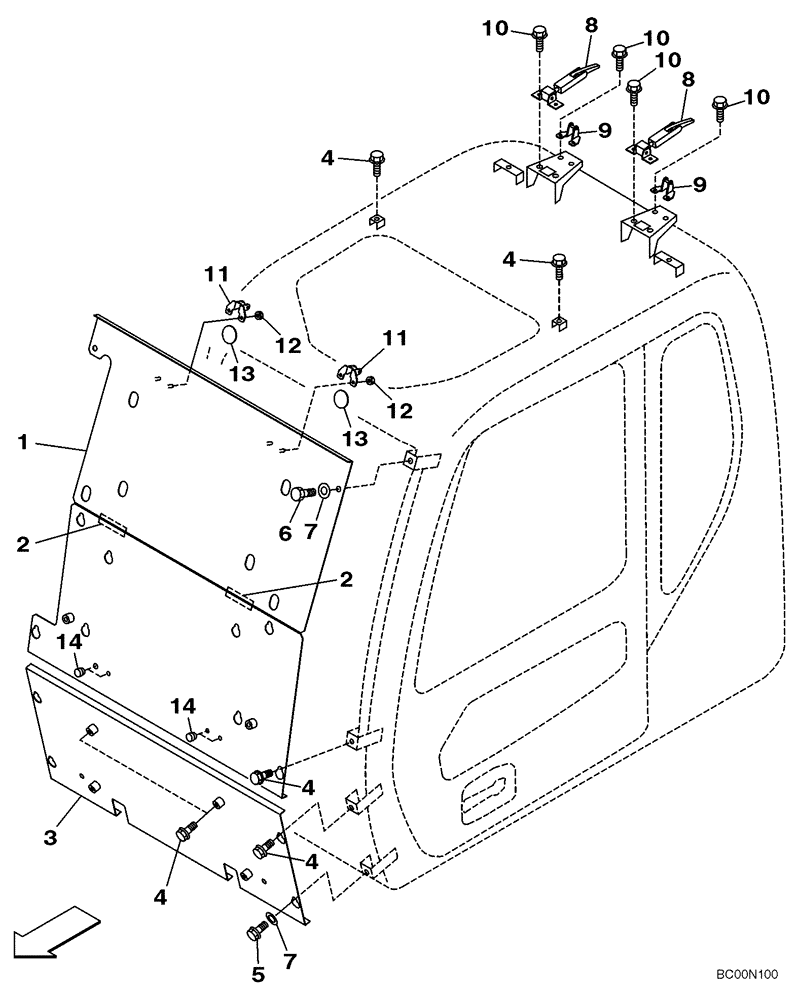

Запчасти Case CX700 (09-050-00[01]) - TRANSPORT GUARD - WINDOW, FRONT (09) - CHASSIS/ATTACHMENTS

1

KHN3414

COVER

Transport Guard, Incl. 2

1шт.

2

152590A1

HINGE

2шт.

3

KHN2870

COVER

Transport Guard

1шт.

4

162880A1

BOLT

4шт.

5

159657A1

BOLT,High Strength, M10

2шт.

6

167472A1

BOLT,High Strength, M10 x 20mm, Cl 10.9

M10 x 20; 10.9

4шт.

7

150409A1

WASHER

10,5 x 21 x 3,2 mm

8шт.

8

150854A1

FASTENER

2шт.

9

150856A1

STOP LOCK

2шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

8шт.

11

150856A1

STOP LOCK

2шт.

12

150469A1

FLANGE NUT

4шт.

13

151756A1

PLATE WASHER

2шт.

14

161804A1

RUBBER BLOCK

4шт.
