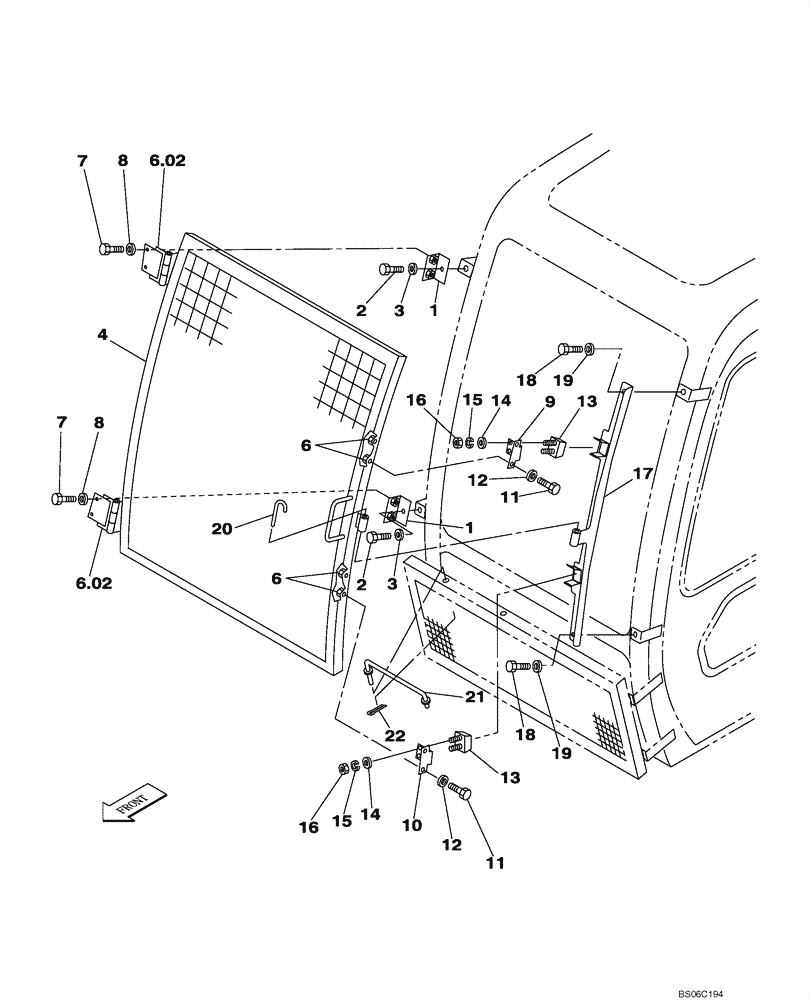

Запчасти Case CX700 (09-048-00[01]) - CAB GUARD - WINDSHIELD, UPPER (09) - CHASSIS/ATTACHMENTS

1

KHN3387

SUPPORT

2шт.

2

159657A1

BOLT,High Strength, M10

M10 x 1.25 x 25

2шт.

3

150409A1

WASHER

W M10

2шт.

4

KHN3385

STONEGUARD

Incl. 6.02

1шт.

6.02

KSN0545

HINGE

2шт.

7

159657A1

BOLT,High Strength, M10

M10 x 1.25 x 25

4шт.

8

150409A1

WASHER

W M10

4шт.

9

KHN2875

BRACKET

1шт.

10

KHN2876

BRACKET

1шт.

11

159657A1

BOLT,High Strength, M10

M10 x 1.25 x 25

4шт.

12

150409A1

WASHER

M10

4шт.

13

KRN2098

STOP

2шт.

14

150409A1

WASHER

W M10

4шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

17

KHN3386

SUPPORT

1шт.

18

159657A1

BOLT,High Strength, M10

M10 x 1.25 x 25

2шт.

19

150409A1

WASHER

W M10

2шт.

20

KHN2878

PIN

1шт.

21

159101A1

STAY

1шт.

22

153181A1

COTTER PIN

1шт.
