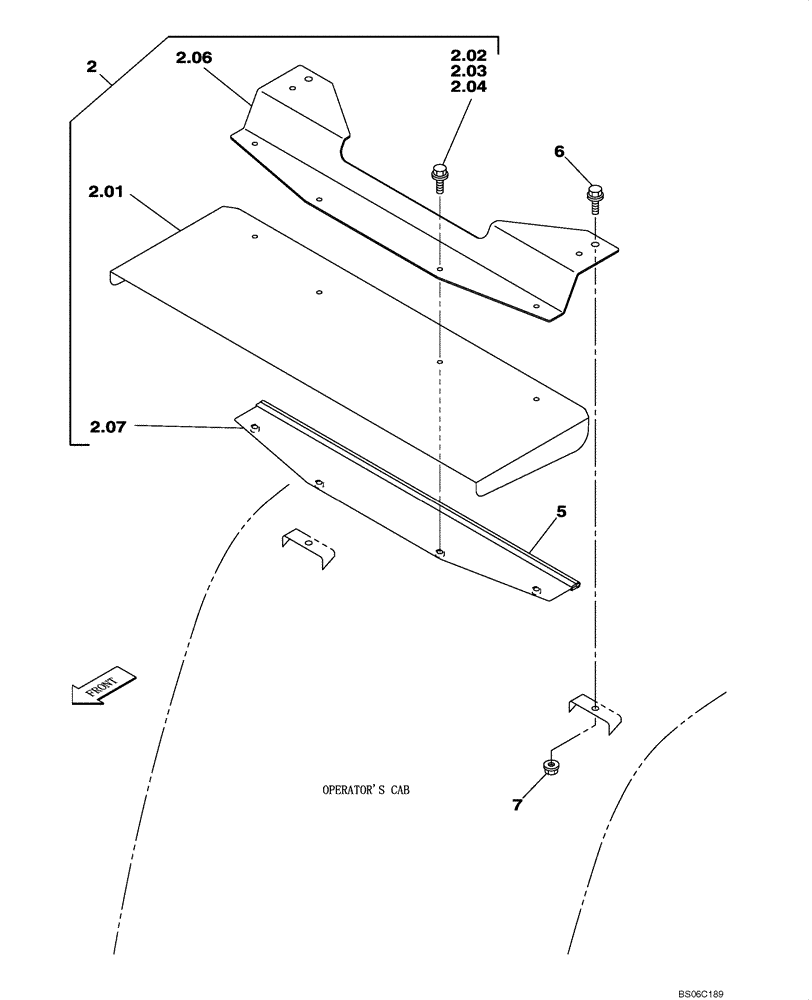

Запчасти Case CX700 (09-042-00[01]) - RAIN DEFLECTOR (09) - CHASSIS/ATTACHMENTS

2

KHN2999

DEFLECTOR

Incl. 2.01 - 2.07

1шт.

2.01

KHN2899

DEFLECTOR

1шт.

2.02

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

2.03

183-108VR

SPRING WASHER

SW 8

4шт.

2.04

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

2.06

KHN2898

BRACKET

1шт.

2.07

KHN2900

HOLDER

1шт.

5

KHN2901

RUBBER STRIP

1шт.

6

166352A1

BOLT

2шт.

7

150475A1

FLANGE NUT

N M12

2шт.
