(09-035-00[01]) - CAB AIR CONDITIONING - DIFFUSER

Запчасти Case CX700 (09-035-00[01]) - CAB AIR CONDITIONING - DIFFUSER (09) - CHASSIS/ATTACHMENTS

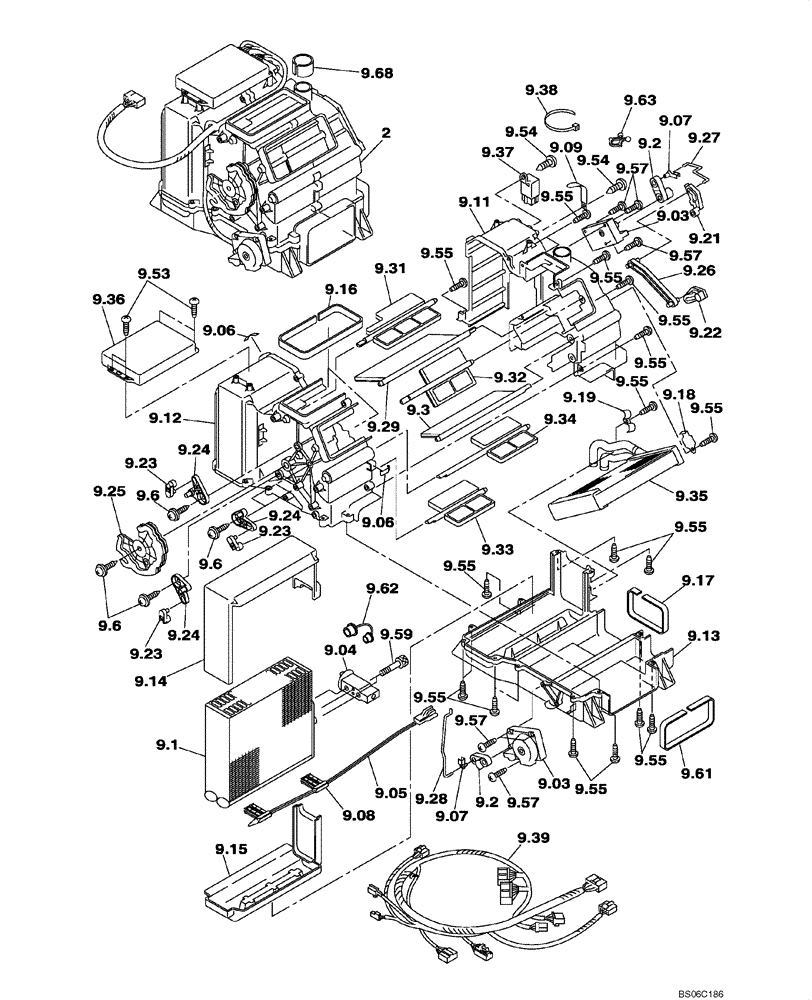

Схема запчастей Case CX700 - (09-035-00[01]) - CAB AIR CONDITIONING - DIFFUSER (09) - CHASSIS/ATTACHMENTS
9.55
9.08
9.54
9.04
9.23
9.55
9.61
9.29
9.24
9.07
9.55
9.24
9.11
9.1
9.55
9.18
9.31
9.55
9.26
9.06
9.35
9.57
9.55
9.63
9.2
9.62
9.12
9.05
9.23
9.23
9.15
9.24
9.07
9.22
9.55
9.14
9.03
9.25
9.55
9.55
9.55
9.13
9.57
9.09
9.57
9.54
9.28
9.19
9.36
9.37
9.68
9.6
9.34
9.55
9.6
9.6
9.33
9.17
9.21
9.59
9.38
9.57
9.03
9.53
9.16
9.3
2
9.55
9.27
9.2
9.06
9.32
9.39
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KHR4135

AIR CONDITIONER

Incl. 9.03 - 9.68 and Figure 09-028-00 01

1шт.

9.03

KHR2802

MOTOR, ELECTRIC

2шт.

9.04

KHR2803

VALVE

See Fig 09-032-00(01) for O-rings

1шт.

9.05

KHR2804

SENSOR

1шт.

9.06

KHR2805

CLAMP

2шт.

9.07

KHR2806

HOLDER

2шт.

9.08

KHR2807

HOLDER

2шт.

9.09

KHR2808

CLAMP

1шт.

9.1

KHR4115

COOLER

1шт.

9.11

KHR2810

HOUSING

1шт.

9.12

KHR2811

HOUSING

1шт.

9.13

KHR2812

HOUSING

1шт.

9.14

KHR4116

OUTER SHIELD

1шт.

9.15

KHR4117

OUTER SHIELD

1шт.

9.16

KHR2815

STRIP-GASKET

2шт.

9.17

KHR2816

STRIP-GASKET

1шт.

9.18

KHR11400

CONSOLE

1шт.

9.19

KHR2818

CLAMP

1шт.

9.2

KHR2819

LEVER

2шт.

9.21

KHR2820

LEVER

1шт.

9.22

KHR2821

LEVER

1шт.

9.23

KHR2822

LEVER

4шт.

9.24

KHR2823

LEVER

4шт.

9.25

KHR2824

CAM

1шт.

9.26

KHR2825

THREADED ROD

1шт.

9.27

KHR2826

THREADED ROD

1шт.

9.28

KHR2827

THREADED ROD

1шт.

9.29

KHR2828

SHUTTER

1шт.

9.3

KHR2829

SHUTTER

1шт.

9.31

KHR2830

SHUTTER

1шт.

9.32

KHR2831

SHUTTER

1шт.

9.33

KHR2832

SHUTTER

1шт.

9.34

KHR2833

SHUTTER

1шт.

9.35

KHR11390

RADIATOR, HEATER

1шт.

9.36

KHR2835

ECU

1шт.

9.37

KHR2836

RELAY

1шт.

9.38

KHR2838

MOUNTING CLIP

3шт.

9.39

KHR2839

HARNESS

1шт.

9.4

KHR4118

RESISTOR

1шт.

9.53

KHR2855

SCREW

M4 x 14

4шт.

9.54

KHR2856

SCREW

M5 x 14

2шт.

9.55

KHR2857

SELF-TAP SCREW

M5 x 16

20шт.

9.57

KHR2859

SELF-TAP SCREW

M4 x 22

6шт.

9.59

KHR2861

BOLT,Hex Skt Hd

M5 x 40

2шт.

9.6

KHR2862

SELF-TAP SCREW

M5 x 12

5шт.

9.61

KHR2837

PACKING

1шт.

9.62

KHR2853

CAP

1шт.

9.63

KHR2854

CLAMP

1шт.

9.68

KHR3230

BUSHING

1шт.
