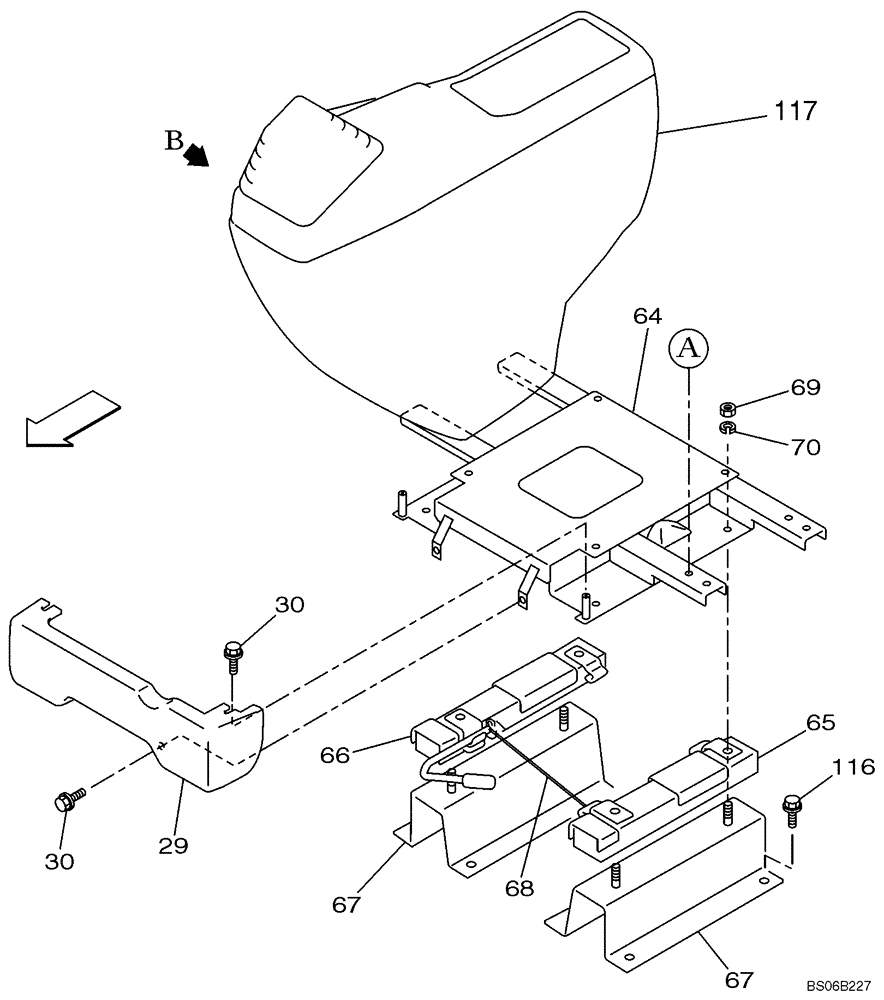

Запчасти Case CX700 (09-027-00[01]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (09) - CHASSIS/ATTACHMENTS

29

KHN3586

COVER

1шт.

30

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

64

KHN2823

HOLDER

1шт.

65

KHN2473

SLIDE GUIDE

1шт.

66

KHN2474

SLIDE GUIDE

1шт.

67

KHN2475

CENTRAL RAIL

1шт.

68

KHN2476

CENTRAL RAIL

1шт.

69

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

70

892-11010

LOCK WASHER,M10

8шт.

116

166346A1

BOLT,Sems, M10

8шт.

117

REF

INSTRUCTION

Arm, Right Hand; See Figure 09-029-00 01

1шт.

118

REF

INSTRUCTION

Arm, Left Hand; Not Illustrated; See Figure 09-028-00 01

1шт.

119

87344650

DRIVER SEAT

Not Illustrated; See See Page(s) 09-030-00 01

1шт.
