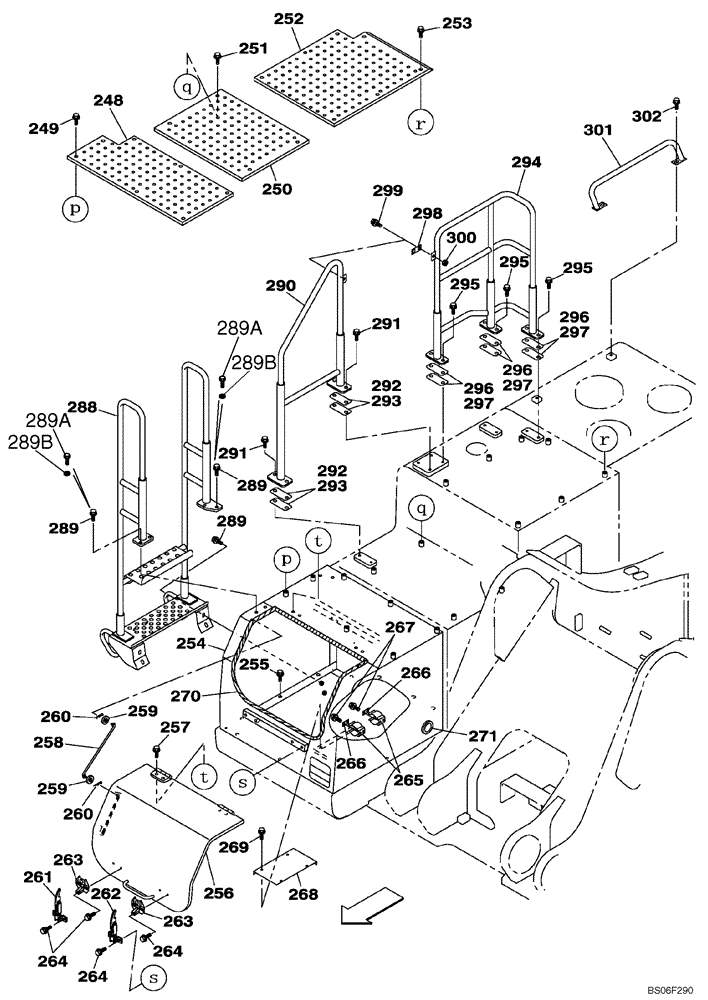

Запчасти Case CX700 (09-016-00[01]) - COWLING FRONT RIGHT HAND-SIDE CABINET - GRAB RAIL (09) - CHASSIS/ATTACHMENTS

248

KWN10090B1

STEEL PLATE

1шт.

249

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

250

KWN0028B1

STEEL PLATE

1шт.

251

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

252

KWN10190B1

STEEL PLATE

2шт.

253

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

254

KWN10020Y2

COVER

1шт.

255

166352A1

BOLT

M12 x 30

7шт.

256

KWN0011Y2

COVER

1шт.

257

166352A1

BOLT

M12 x 30

4шт.

258

KWN0044

STAY

1шт.

259

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

260

153181A1

COTTER PIN

2шт.

261

151356A1

LOCK ASSY

1шт.

262

151361A1

HANDLE

1шт.

263

150785A1

STOP LOCK

2шт.

264

166350A1

BOLT

M8 x 20

8шт.

265

152772A1

HOLDER

2шт.

266

KHN3548

PLATE

2шт.

267

166346A1

BOLT,Sems, M10

M10 x 16

4шт.

268

KWN0125

COVER

1шт.

269

167518A1

BOLT

M8 x 16

4шт.

270

KWN0118

GROMMET

2550 mm

1шт.

271

KRJ0188

GROMMET

1шт.

288

KWN0078Y2

GRAB RAIL

1шт.

289

166352A1

BOLT

M12 x 30

4-8шт.

289a

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

If Used

4шт.

289b

150811A1

WASHER

If Used

4шт.

290

KWN10250Y2

GRAB RAIL

1шт.

291

166352A1

BOLT

M12 x 30

4шт.

292

KUN10200

ADJUSTING PLATE

1.2 mm

1шт.

293

KUN10210

ADJUSTING PLATE

0.5 mm

1шт.

294

KWN10260Y2

GRAB RAIL

1шт.

295

166352A1

BOLT

M12 x 30

6шт.

296

KUN10200

ADJUSTING PLATE

1.2 mm

1шт.

297

KUN10210

ADJUSTING PLATE

0.5 mm

1шт.

298

KUN0245

PLATE

1шт.

299

166352A1

BOLT

M12 x 30

2шт.

300

829-1412

NUT,M12, Cl 10.9

2шт.

301

KTN10720Y2

HANDRAIL

Replaces KTN1384Y2

1шт.

302

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.
