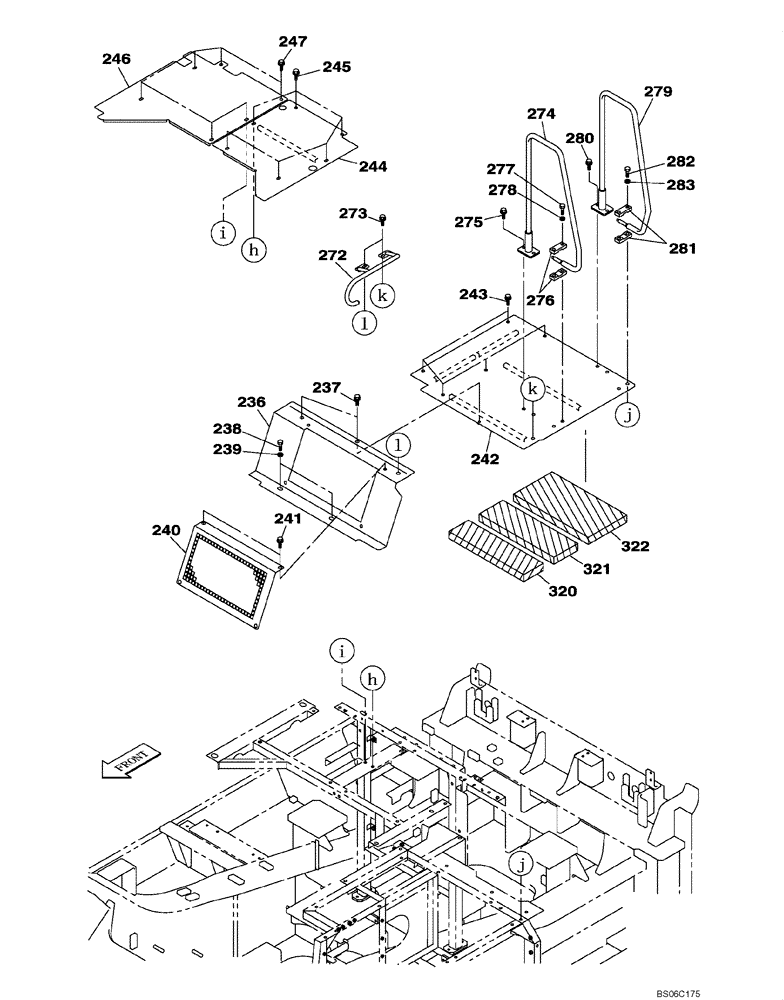

Запчасти Case CX700 (09-014-00[01]) - COWLING - GRAB RAIL (09) - CHASSIS/ATTACHMENTS

236

KWN0069Y2

COVER

1шт.

237

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

238

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

239

151161A1

WASHER

2шт.

240

KWN0070Y2

COVER

1шт.

241

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

242

KWN0071Y2

COVER

1шт.

243

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

244

KWN0072Y2

COVER

1шт.

245

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

246

KWN0073Y2

COVER

1шт.

247

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

272

KWN0074Y2

GRAB RAIL

1шт.

273

166352A1

BOLT

M12 x 30

2шт.

274

KWN0075Y2

GRAB RAIL

1шт.

275

166352A1

BOLT

M12 x 30

2шт.

276

KHN3033

COLLAR

2шт.

277

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

278

150811A1

WASHER

W 12

2шт.

279

KWN0076Y2

GRAB RAIL

1шт.

280

166352A1

BOLT

M12 x 30

2шт.

281

KHN3033

COLLAR

2шт.

282

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

283

150811A1

WASHER

W 12

2шт.

320

KWN0101

NOISE PROTECTION

1шт.

321

KWN0102

NOISE PROTECTION

1шт.

322

KWN0103

NOISE PROTECTION

1шт.
