(09-011-00[01]) - COWLING - ENGINE COVER

Запчасти Case CX700 (09-011-00[01]) - COWLING - ENGINE COVER (09) - CHASSIS/ATTACHMENTS

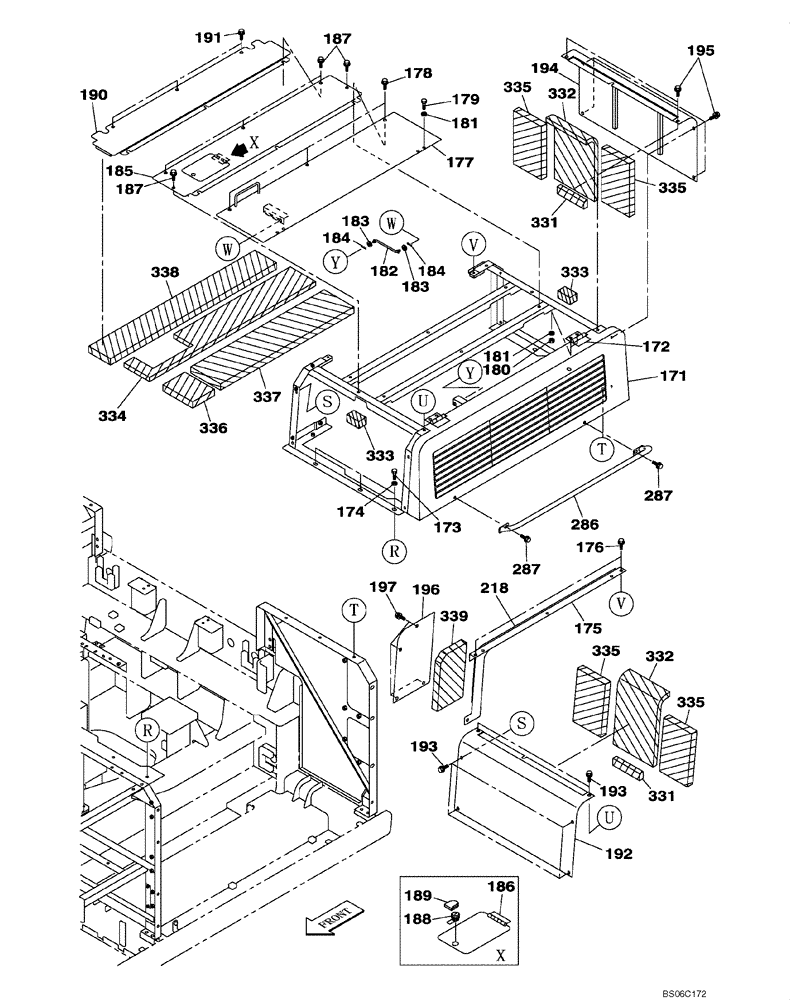

Схема запчастей Case CX700 - (09-011-00[01]) - COWLING - ENGINE COVER (09) - CHASSIS/ATTACHMENTS
193
333
287
334
331
196
192
338
191
195
335
197
287
176
185
183
179
171
182
286
337
189
178
180
339
187
190
181
172
174
335
186
335
184
187
193
175
177
332
183
333
332
194
184
331
181
335
188
336
173
218
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KWN0012G1

ENGINE HOOD PANEL

Incl. 171, 172

1шт.

171

KWN0045

COVER

1шт.

172

159098A1

HINGE

2шт.

173

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

174

151161A1

WASHER

6шт.

175

KWN0043

FRAME

1шт.

176

166352A1

BOLT

M12 x 30

2шт.

177

KWN0050G1

ENGINE HOOD PANEL

1шт.

178

166352A1

BOLT

M12 x 30

3шт.

179

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

180

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

181

150409A1

WASHER

W M10

8шт.

182

159119A1

STAY

1шт.

183

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

184

153181A1

COTTER PIN

2шт.

185

KWN0051G1

ENGINE HOOD PANEL

Incl. 186

1шт.

186

162283A1

HINGE

1шт.

187

166352A1

BOLT

M12 x 30

5шт.

188

KNN0469

LOCK

1шт.

189

KAN2497

CAP

1шт.

190

KWN0052G1

SIEVE

1шт.

191

166352A1

BOLT

M12 x 30

3шт.

192

KWN0048G1

ENGINE HOOD PANEL

1шт.

193

166352A1

BOLT

M12 x 30

6шт.

194

KWN0049G1

ENGINE HOOD PANEL

1шт.

195

166352A1

BOLT

M12 x 30

6шт.

196

KWN0047G1

ENGINE HOOD PANEL

1шт.

197

166352A1

BOLT

M12 x 30

4шт.

218

159116A1

GROMMET

1шт.

286

KWN0077Y2

GRAB RAIL

1шт.

287

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

331

KWN0091

SEAL

2шт.

332

KWN0092

SEAL

2шт.

333

KWN0093

SEAL

2шт.

334

KWN0094

SEAL

1шт.

335

KWN0107

NOISE PROTECTION

4шт.

336

KWN0108

NOISE PROTECTION

1шт.

337

KWN0109

NOISE PROTECTION

1шт.

338

KWN0110

NOISE PROTECTION

1шт.

339

KWN0124

NOISE PROTECTION

1шт.
