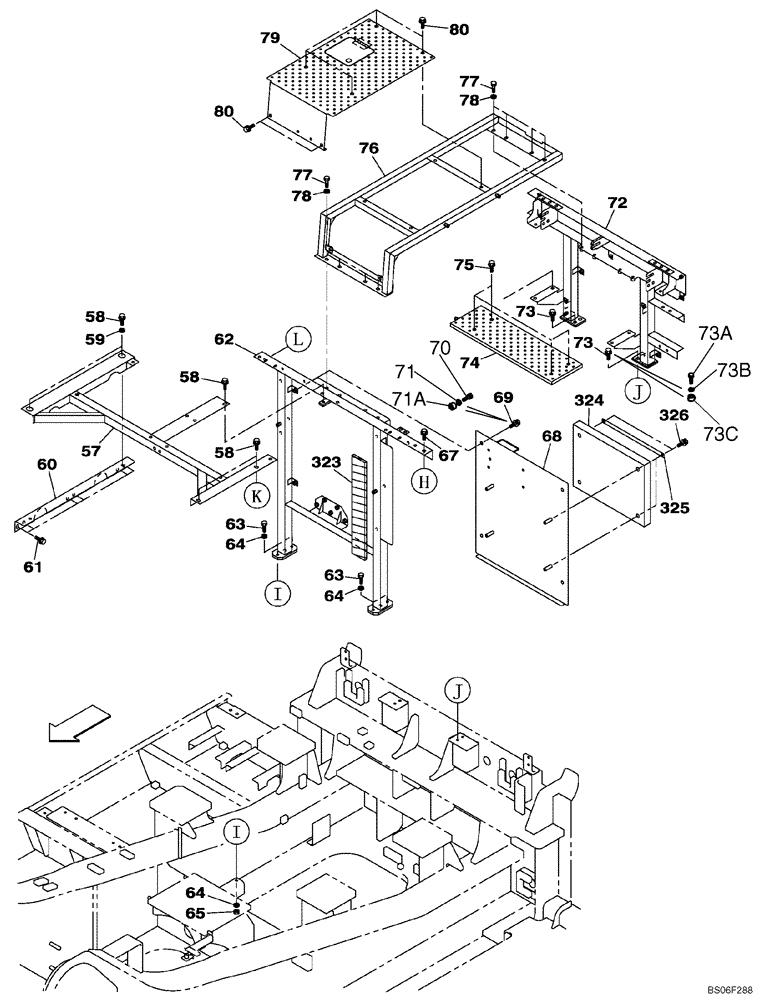

Запчасти Case CX700 (09-009-00[01]) - COWLING - FRAMEWORK (09) - CHASSIS/ATTACHMENTS

57

KWN0039

FRAME

1шт.

58

166352A1

BOLT

M12 x 30

5шт.

59

162409A1

WASHER

2шт.

60

KWN0062

SUPPORT

1шт.

61

166352A1

BOLT

M12 x 30

6шт.

62

KWN0040

FRAME

1шт.

63

AES0399

BOLT,Full Thd

M12 x 55

4шт.

64

150811A1

WASHER

W 12

8шт.

65

829-1412

NUT,M12, Cl 10.9

4шт.

67

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

68

KWN0065

PROTECTION PLATE

1шт.

69

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

If Used

4шт.

70

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

If Used

4шт.

71

150811A1

WASHER

If Used

4шт.

71a

KHN13750

SPACER

If Used

4шт.

72

KWN10230

FRAME

1шт.

73

166352A1

BOLT

M12 x 30; If Used

4шт.

73a

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

If Used

4шт.

73b

150811A1

WASHER

If Used

4шт.

73c

KHN13750

SPACER

If Used

4шт.

74

KWN0066

STEP

1шт.

75

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

76

KWN0042

FRAME

1шт.

77

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

78

150811A1

WASHER

W 12

8шт.

79

KWN0122

STEP

1шт.

80

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

323

KWN0089

SEAL

1шт.

324

KWN0080

FOAM

1шт.

325

KWN0083

SEAL RETAINER

2шт.

326

166345A1

BOLT

M8 x 16

4шт.
