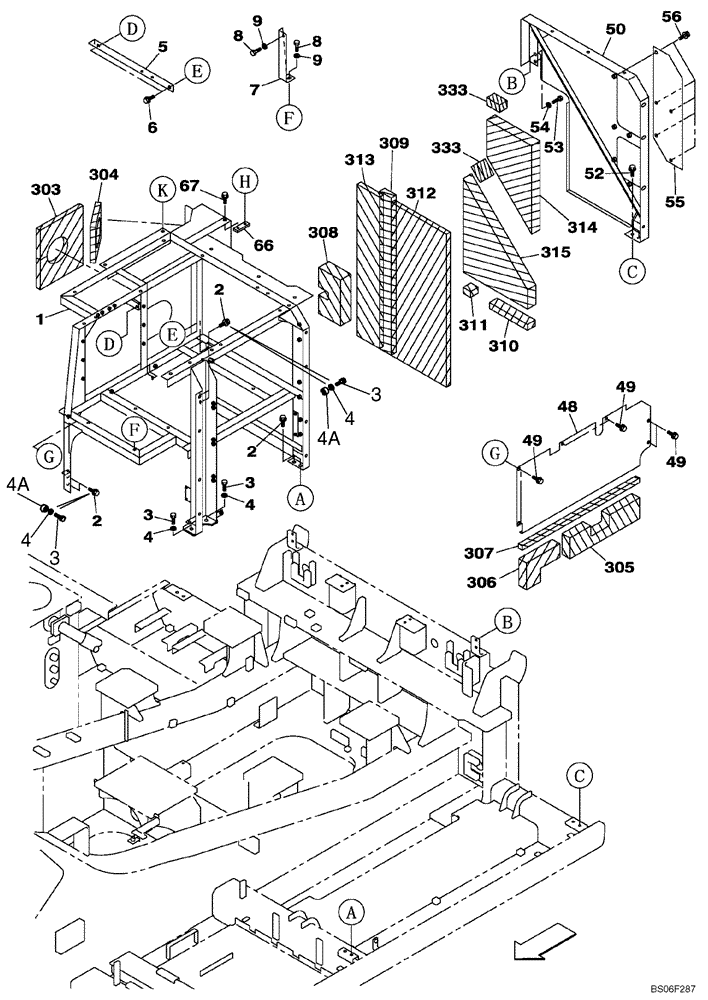

Запчасти Case CX700 (09-008-00[01]) - COWLING - FRAMEWORK (09) - CHASSIS/ATTACHMENTS

1

KWN10030

FRAME

1шт.

2

166352A1

BOLT

M12 x 30

2-6шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2-6шт.

4

150811A1

WASHER

W 12

2-6шт.

4a

KHN13750

SPACER

4шт.

5

KWN0037

FRAME

1шт.

6

166352A1

BOLT

M12 x 30

2шт.

7

KWN0061

SUPPORT

2шт.

8

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

9

150811A1

WASHER

W 12

4шт.

48

KWN0064

PROTECTION PLATE

1шт.

49

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

50

KWN10110

SUPPORT ASSY.

1шт.

52

166352A1

BOLT

M12 x 30

2шт.

53

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

54

151161A1

WASHER

2шт.

55

KWN10120

PROTECTION PLATE

1шт.

56

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

66

KWN0063

PLATE

1шт.

67

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

303

KWN0084

SEAL

1шт.

304

KWN0085

SEAL

1шт.

305

KWN0086

SEAL

1шт.

306

KWN10150

SEAL

1шт.

307

KWN0087

SEAL

1шт.

308

KWN0088

SEAL

1шт.

309

KWN0090

SEAL

1шт.

310

KWN0095

SEAL

1шт.

311

KWN0096

SEAL

1шт.

312

KWN0104

NOISE PROTECTION

1шт.

313

162441A1

NOISE PROTECTION

1шт.

314

KWN10100

NOISE PROTECTION

1шт.

315

KWN0106

NOISE PROTECTION

1шт.

333

KWN0093

SEAL

2шт.
