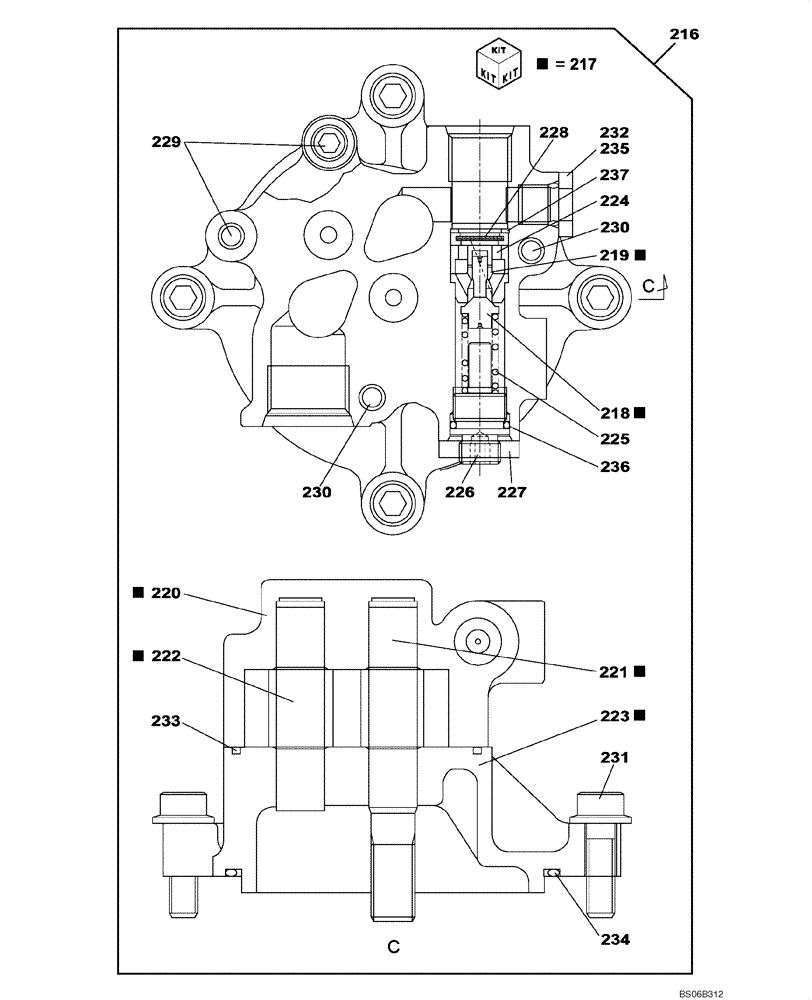

Запчасти Case CX700 (08-103-00[01]) - HIGH PRESSURE PUMP - PUMP, PILOT CONTROL (08) - HYDRAULICS

KWJ0003

HYDRAULIC PUMP

Incl. 216 - 237; Also Includes Figures 08-100-00 01, Ref. 1 - 71, Figure 08-101-00 01, Ref. 72 - 137, 08-102-00 01 Ref. 138 - 215

1шт.

216

LJ01287

HYDRAULIC PUMP

Incl. 217 - 237

1шт.

217

LC00260

GEAR

Incl. 218 - 223

1шт.

218

NSS

NOT SOLD SEPARAT

Poppet

1шт.

219

NSS

NOT SOLD SEPARAT

Seat

1шт.

220

NSS

NOT SOLD SEPARAT

Case, Gear

1шт.

221

NSS

NOT SOLD SEPARAT

Gear

1шт.

222

NSS

NOT SOLD SEPARAT

Gear

1шт.

223

NSS

NOT SOLD SEPARAT

Case

1шт.

224

LE01175

RING

1шт.

225

LG00536

SPRING

1шт.

226

LF00043

ADJUSTER

1шт.

227

163662A1

LOCK NUT

1шт.

228

163663A1

FILTER

1шт.

229

LA00593

BOLT,Hex Skt, M8 x 50mm, Cl 12.9

M8 x 5

2шт.

230

LA00594

BOLT,Hex Skt, M8 x 65mm, Cl 12.9

M8 x 6

2шт.

231

LA00592

BOLT,Hex Skt, M10 x 30mm, Cl 12.9

4шт.

232

155496A1

PLUG

1шт.

233

163667A1

SEALING RING

1шт.

234

154733A1

O-RING

1шт.

235

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

236

154483A1

O-RING

1шт.

237

163668A1

RING, LOCKING

RING, LOCK

1шт.
